Description
Function of Inlet Valves
The primary function of an inlet valve is to regulate airflow at the compressor suction or inlet side.
Depending on the compressor design and control philosophy, the inlet valve may be used to:
- Regulate the volume of air entering the compressor
- Control compressor capacity according to demand
- Support compressor loading and unloading
- Maintain stable operating conditions
- Coordinate airflow with downstream pressure requirements
- Reduce unnecessary compressor energy consumption during reduced demand
- Assist automatic compressor control sequences
- Provide controlled operation during start-up and shutdown
Inlet valve operation is generally integrated with the compressor’s PLC, controller, or other capacity-control system.
How Centrifugal Compressor Inlet Valves Work
During compressor operation, the inlet valve changes its opening position to control the amount of air entering the compressor.
When demand for compressed air increases, the control system can increase the valve opening to permit greater airflow into the compressor. When demand decreases, the valve position can be adjusted to reduce inlet flow.
The valve position may be controlled automatically using pneumatic, electric, hydraulic, or other actuator arrangements depending on the compressor design.
The actual control strategy depends on the compressor manufacturer, compressor model, operating conditions, and overall anti-surge and capacity-control system.
Types and Configurations
Inlet valves for centrifugal compressors can be supplied in different configurations depending on the compressor arrangement and application.
Butterfly-Type Inlet Valves
Butterfly valves use a rotating disc to regulate airflow through the inlet passage. They can provide relatively simple and fast flow control and may be equipped with pneumatic or electric actuators.

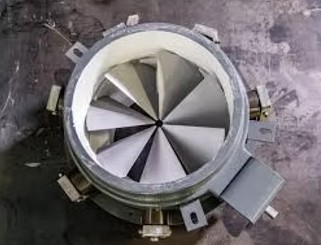

Inlet Guide Vane Assemblies
Some centrifugal compressors use inlet guide vanes to influence the direction and quantity of air entering the impeller. These systems are commonly integrated with the compressor’s capacity-control arrangement.
Actuated Inlet Valves
Inlet valves can be supplied with actuators and position-control systems for automatic operation. Actuation may include:
- Pneumatic actuators
- Electric actuators
- Hydraulic actuation
- Positioners
- Solenoid-operated control arrangements
The correct actuator depends on the compressor’s control requirements and available utilities.
Construction and Materials
Depending on the compressor application and operating conditions, inlet valve construction may include:
- Carbon steel
- Stainless steel
- Cast or ductile materials
- Aluminium or other lightweight materials where applicable
- Engineered sealing materials
- Corrosion-resistant internal components
Material selection depends on the inlet air conditions, temperature, pressure, environmental conditions, valve design, and compressor manufacturer specifications.
Inlet Valve Components
A typical actuated inlet valve assembly may include:
- Valve body
- Disc or regulating element
- Shaft
- Bushings or bearings
- Sealing elements
- Actuator
- Positioner
- Linkage mechanism
- Mounting components
- Position feedback mechanism
- Pneumatic or electrical connections
The exact construction varies according to the compressor manufacturer and valve design.
Importance of Proper Inlet Valve Operation
Incorrect inlet valve operation can affect compressor performance and overall system stability. A valve that does not reach the required position, responds slowly, or develops excessive leakage may interfere with the compressor’s capacity-control system.
Proper inlet valve operation helps maintain:
- Stable airflow
- Controlled compressor capacity
- Consistent discharge conditions
- Efficient compressor operation
- Proper interaction with anti-surge controls
- Reliable start-up and shutdown sequences
In multi-stage centrifugal compressors, correct inlet flow control is particularly important because changes in operating conditions can influence the aerodynamic behavior of the compressor stages.
Common Inlet Valve Problems
Inlet valves may experience mechanical, pneumatic, electrical, or control-related problems during service.
Common issues include:
- Valve sticking
- Restricted valve movement
- Excessive mechanical wear
- Shaft or bearing wear
- Seal deterioration
- Air leakage
- Actuator malfunction
- Positioner problems
- Incorrect valve positioning
- Slow actuator response
- Corrosion
- Deposits or contamination
- Linkage wear or misalignment
- Position-feedback problems
These problems may result in unstable operation, incorrect capacity control, reduced performance, or compressor control alarms.
Maintenance and Inspection
Regular inspection of the inlet valve and actuator assembly is important for reliable compressor operation.
Recommended inspection activities may include:
- Checking valve movement throughout its operating range
- Inspecting the valve body and internal components
- Checking shaft and linkage condition
- Inspecting seals for leakage
- Checking actuator operation
- Inspecting pneumatic supply pressure where applicable
- Checking electrical connections for electrically actuated systems
- Verifying valve position feedback
- Checking positioner calibration
- Inspecting mounting and coupling components
- Removing accumulated deposits where appropriate
- Checking for abnormal vibration or operating noise
Maintenance intervals should follow the compressor manufacturer’s recommendations and the operating environment.
Replacement of Inlet Valves
Replacement may be required when the valve has excessive wear, leakage, damaged internal components, actuator problems, or unreliable position control.
A replacement inlet valve should be matched to the existing compressor system rather than selected only by nominal valve size.
Important compatibility factors include:
- Compressor manufacturer
- Compressor model
- Compressor serial number
- Inlet connection dimensions
- Valve size
- Flow capacity
- Operating pressure
- Operating temperature
- Actuator type
- Control signal
- Valve travel
- Position feedback
- Installation orientation
- Control-system compatibility
Aegis Projects can assist with identifying the appropriate replacement configuration based on available compressor and valve information.
Applications
Centrifugal compressor inlet valves are used in compressed-air systems across industries such as:
- Manufacturing plants
- Automotive industries
- Steel plants
- Cement plants
- Power plants
- Chemical industries
- Petrochemical facilities
- Refineries
- Pharmaceutical manufacturing
- Food and beverage industries
- Textile industries
- Process industries
- General industrial compressed-air systems
Inlet Valve Selection Specifications
| Parameter | Requirement |
|---|---|
| Component | Centrifugal Compressor Inlet Valve |
| Compressor Type | Centrifugal Air Compressor |
| Compressor Make | As per compressor system |
| Compressor Model | As per equipment specification |
| Valve Type | Butterfly / regulating / other applicable design |
| Valve Size | As per compressor inlet connection |
| Operating Pressure | As per system requirement |
| Operating Temperature | As per application |
| Actuation | Pneumatic / Electric / Hydraulic / As applicable |
| Control Signal | As per compressor control system |
| Position Feedback | As required |
| Body Material | As per application |
| Seal Material | As per operating conditions |
| Connection Type | As per existing compressor arrangement |
| Installation | Compressor inlet / suction system |
| Application | Capacity and airflow control |
Why Choose Aegis Projects?
Aegis Projects Technology provides industrial compressor spare parts and replacement solutions for centrifugal air compressor systems. Our inlet valve solutions can be evaluated based on the compressor model, existing valve configuration, operating conditions, and control requirements.
We support requirements for:
- Replacement inlet valves
- Compressor maintenance spares
- Actuated valve assemblies
- Valve components and accessories
- Retrofit requirements
- Industrial compressor spare parts
- Identification of replacement components
- Technical assistance for compressor spare requirements
For accurate selection, share the compressor make, model, serial number, existing valve details, nameplate information, drawings, or photographs wherever available.
Request a Quote
Looking for an inlet valve for a centrifugal air compressor?
Contact Aegis Projects Technology Pvt. Ltd. with your compressor details and requirement. Our team can assist with identifying a suitable inlet valve or replacement assembly for your compressor application.
