Description
Function of Air Coolers
Air coolers perform an important heat-management function within a centrifugal compressor package.
Depending on the system configuration, an air cooler can:
- Reduce compressed-air temperature
- Remove heat generated during compression
- Improve downstream air conditions
- Support interstage cooling
- Reduce thermal loading on downstream equipment
- Help control compressed-air temperature
- Condense moisture where operating conditions permit
- Support compressor system efficiency
- Protect downstream equipment from excessive temperature
The actual cooling arrangement depends on the compressor design and process requirements.
Air Cooling in Centrifugal Compressors
Compression increases the temperature of air. In systems with multiple compression stages, cooling between stages can help reduce the temperature before air enters the following compression stage.
A simplified arrangement can be represented as:
Compressor Stage → Air Cooler → Next Stage / Downstream System
Depending on the compressor package, air coolers may be installed as:
- Intercoolers
- Aftercoolers
- Discharge air coolers
- Package-mounted air coolers
- Remote air-cooled heat exchangers
Intercoolers
Intercoolers are installed between compression stages to remove heat from compressed air before it enters the next stage.
Effective interstage cooling can help:
- Reduce air temperature
- Manage compression-stage temperatures
- Reduce thermal loading
- Support compressor operating conditions
- Improve the overall compression process
The required cooler duty depends on the compressor design and operating conditions.
Aftercoolers
Aftercoolers are installed downstream of the final compression stage.
Their primary purpose is to reduce the temperature of compressed air before it enters the downstream compressed-air system.
Aftercooling can help:
- Reduce discharge-air temperature
- Protect downstream equipment
- Improve compressed-air handling
- Support moisture separation
- Reduce thermal loading on air receivers and piping
Where compressed air is cooled below its dew point, moisture may condense and should be properly removed through an appropriate condensate-management system.

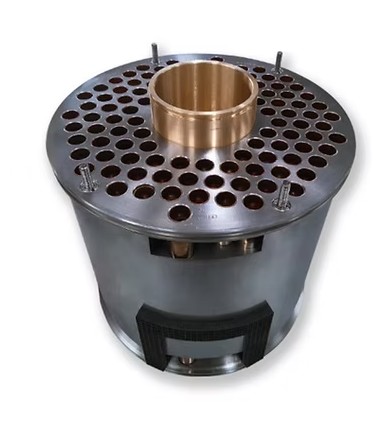

Air Cooler Construction
Air coolers are heat-transfer assemblies designed according to the required cooling duty and operating environment.
Depending on the design, an air cooler may include:
- Heat-transfer tubes
- Fins
- Tube sheets
- Headers
- Air passages
- Cooling fan
- Fan motor
- Fan guard
- Structural frame
- Inlet and outlet connections
- Temperature sensors
- Pressure connections
- Drain connections where applicable
The exact construction depends on the cooler type and compressor package.
Air-Cooled Heat Exchanger Arrangement
An air-cooled arrangement uses ambient air as the cooling medium.
A typical system may include:
Hot Compressed Air → Heat Exchanger → Cooled Compressed Air
Fans move ambient air across the heat-transfer surfaces, allowing heat to be transferred from the compressed air to the surrounding atmosphere.
Air-cooled arrangements can be useful where cooling-water availability is limited or where an air-cooled package is specified for the installation.
Cooling Performance
Air cooler performance depends on several operating factors, including:
- Compressed-air flow
- Air inlet temperature
- Air outlet temperature
- Ambient temperature
- Cooling-air flow
- Heat-transfer surface area
- Fin condition
- Fouling
- Fan performance
- Pressure drop
- Heat-transfer characteristics
The required cooler capacity should therefore be established from the compressor’s actual operating conditions.
Air Cooler Materials
Materials are selected according to the compressed-air service, cooling environment, pressure, temperature, corrosion conditions, and design requirements.
Potential material considerations may include:
- Carbon steel
- Stainless steel
- Aluminium
- Copper alloys
- Aluminium-finned tubes
- Application-specific heat-transfer materials
The final material selection should be based on the original equipment specification and applicable engineering requirements.
Air Cooler Fan System
For forced-air cooling arrangements, fans provide the airflow required for heat removal.
Fan assemblies may include:
- Axial-flow fans
- Fan blades
- Fan motors
- Fan guards
- Fan hubs
- Drive arrangements
- Motor supports
- Vibration protection
- Fan control systems
Fan performance has a direct influence on cooler heat-transfer capacity.
Air Cooler Maintenance
Regular inspection and maintenance help maintain heat-transfer performance.
Maintenance activities may include:
- Cleaning heat-transfer surfaces
- Inspecting fins
- Checking tubes
- Checking for leakage
- Inspecting headers and connections
- Checking fan operation
- Inspecting fan blades
- Checking motor condition
- Checking vibration
- Inspecting electrical connections
- Checking temperature performance
- Cleaning accumulated dust and debris
For industrial installations, the maintenance interval should be established according to operating conditions and the equipment manufacturer’s recommendations.
Common Air Cooler Problems
Air cooler performance can deteriorate due to:
- Fouled heat-transfer surfaces
- Blocked fins
- Dust accumulation
- Damaged fins
- Tube leakage
- Corrosion
- Reduced cooling-air flow
- Fan failure
- Fan motor problems
- Excessive vibration
- High ambient temperature
- Incorrect operating conditions
Possible indications of cooler problems include:
- High compressed-air discharge temperature
- Reduced cooling performance
- Increased downstream temperature
- Increased pressure drop
- Fan vibration
- Unusual fan noise
- Visible leakage
The actual cause should be established through inspection and appropriate performance checks.
Air Cooler Replacement
Aegis Projects can support air cooler requirements for:
- Centrifugal compressor maintenance
- Intercooler replacement
- Aftercooler replacement
- Compressor overhaul
- Heat exchanger replacement
- Planned shutdown maintenance
- Cooling-system upgrades
- Compressor package refurbishment
- Retrofit applications
Replacement coolers should be selected according to the required heat-transfer duty, pressure rating, flow conditions, dimensions, connections, and installation arrangement.
Air Cooler Selection Parameters
| Selection Parameter | Requirement |
|---|---|
| Compressor Type | Centrifugal air compressor |
| Cooler Type | Intercooler, aftercooler, or other |
| Air Flow | Required compressed-air flow |
| Air Inlet Temperature | Temperature entering cooler |
| Air Outlet Temperature | Required cooled-air temperature |
| Operating Pressure | Normal and design pressure |
| Cooling Medium | Ambient air or specified cooling medium |
| Ambient Temperature | Site design condition |
| Heat Duty | Required heat removal |
| Pressure Drop | Allowable pressure loss |
| Material | Based on operating conditions |
| Connection Size | Compressor/system piping |
| Installation | Package-mounted or remote |
| Fan Requirement | Airflow and motor requirements |
| Compressor Model | Equipment compatibility |
Industrial Applications
Air coolers for centrifugal compressor systems can be used across:
- Oil & Gas
- Petrochemical
- Chemical Processing
- Power Generation
- Steel Plants
- Cement Plants
- Automotive Manufacturing
- Pharmaceutical Manufacturing
- Food & Beverage
- Textile Industries
- Engineering Industries
- Process Industries
- Manufacturing Plants
- Industrial Utilities
- Large-Scale Compressed-Air Systems
Why Choose Aegis Projects?
Aegis Projects Technology Pvt. Ltd. provides industrial compressor equipment, spare parts, heat-transfer equipment, automation solutions, and engineering support for compressed-air and process applications.
Our air cooler solutions can support:
- Centrifugal compressor cooling
- Intercooler replacement
- Aftercooler replacement
- Compressor maintenance
- Heat exchanger replacement
- Compressor overhaul
- Cooling-system upgrades
- Planned shutdowns
- Compressor package refurbishment
We can assist with air cooler selection based on the compressor make and model, air flow, inlet and outlet temperatures, operating pressure, cooling arrangement, heat duty, pressure drop, dimensions, connection details, and available technical drawings.
Request a Quote
For centrifugal compressor air coolers, provide your compressor make and model, cooler type, air flow, operating pressure, inlet and outlet temperatures, ambient conditions, existing cooler dimensions, connection details, photographs, and technical drawings where available.
Aegis Projects can review the application and assist with an appropriate intercooler, aftercooler, or air-cooled heat exchanger solution for your centrifugal air compressor system.
