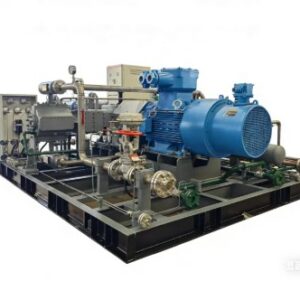

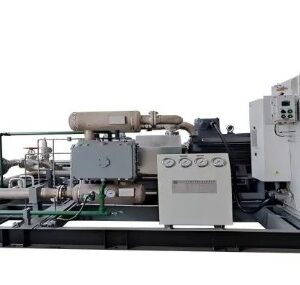

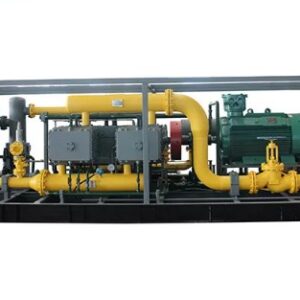

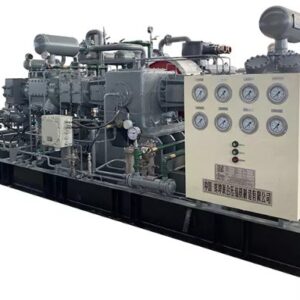

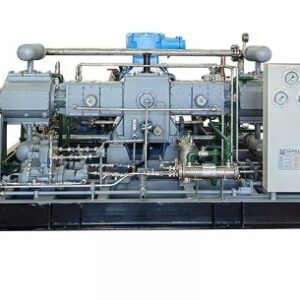

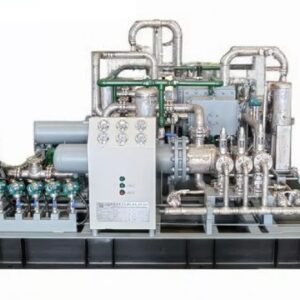

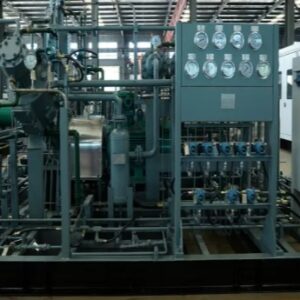

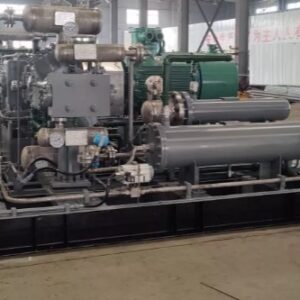

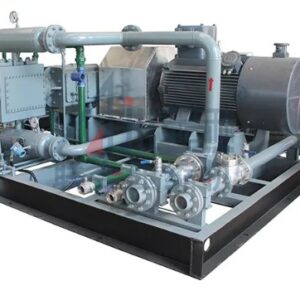

What is a Hydrogen Gas Skid Compressor System?

A Hydrogen Gas Skid Compressor System is a packaged compression unit designed to increase the pressure of hydrogen gas to the required operating level.

The major components of the compression system are mounted on a common structural skid, allowing the package to be assembled, tested, transported, and installed as an integrated unit.

Hydrogen compression requires specialized equipment and careful consideration of gas properties, material compatibility, sealing, leakage prevention, temperature management, and process safety. Aegis Projects develops compressor skids around these application-specific requirements.

Key Features

• Skid-mounted compact configuration
• Engineered specifically for hydrogen gas applications
• Customized suction and discharge pressure configurations
• Suitable for high-pressure hydrogen compression applications
• Integrated gas piping and instrumentation
• Hydrogen-compatible valves and components
• Pressure and temperature monitoring
• Compressor protection and control systems
• PLC-based control and monitoring
• Emergency shutdown provisions
• Gas leak detection interface
• Pressure relief and safety arrangements
• Gas filtration and separation where required
• Aftercooling arrangements where required
• Modular and service-friendly design
• Factory-integrated package for simplified site installation

Applications of Hydrogen Gas Compressor Skids

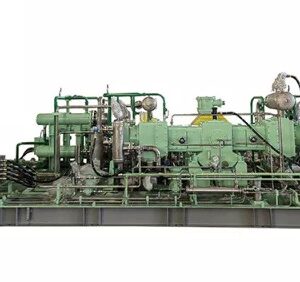

Hydrogen Refueling Systems

Hydrogen compressor skids can be integrated into hydrogen refueling infrastructure for increasing hydrogen pressure to the required level for storage and dispensing.

Green Hydrogen Projects

Compression systems form an important part of hydrogen infrastructure associated with electrolyzer-based green hydrogen production and downstream storage or utilization.

Hydrogen Storage

Hydrogen compression packages can be used to increase gas pressure before storage in suitable high-pressure storage systems.

Industrial Hydrogen Systems

Hydrogen is used across several industrial processes. Compressor skids can provide controlled hydrogen pressure for downstream industrial equipment and processes.

Hydrogen Production Facilities

Compression packages can be integrated with hydrogen production systems to manage hydrogen gas pressure between production, storage, transportation, and utilization stages.

Hydrogen Energy Applications

Hydrogen compressor systems can support emerging hydrogen energy infrastructure, including fuel-cell-related applications and hydrogen distribution systems.

Research & Development Facilities

Customized hydrogen compression packages can also be engineered for pilot plants, laboratories, demonstration facilities, and hydrogen technology development projects.

Major Components

Depending on the application and required operating conditions, a hydrogen gas compressor skid may include:

• Hydrogen gas compressor
• Compressor driver
• Suction and discharge piping
• Gas filters
• Gas separators / scrubbers where required
• Hydrogen-compatible valves
• Check valves
• Isolation valves
• Pressure control valves
• Pressure transmitters
• Temperature sensors
• Flow measurement instruments
• Gas coolers / aftercoolers
• Pressure relief devices
• Hydrogen leak detection interface
• PLC control panel
• Emergency shutdown system
• Electrical and instrumentation system
• Skid-mounted structural frame

The final configuration is determined based on hydrogen flow rate, suction pressure, discharge pressure, hydrogen purity, operating temperature, duty cycle, compression stages, and site conditions.

Engineered for Hydrogen Applications

Hydrogen has unique physical and operating characteristics that require careful consideration when designing compression systems.

Aegis Projects considers application-specific requirements such as:

Material Compatibility

Materials and components are selected with consideration for hydrogen service and the operating pressure and temperature conditions of the system.

Leakage Control

Hydrogen molecules are extremely small and can present specific sealing and leakage challenges. Appropriate equipment, connections, seals, and monitoring arrangements are considered during system engineering.

Temperature Management

Compression can increase gas temperature. Suitable cooling and temperature monitoring arrangements can be incorporated based on the compression duty.

Pressure Management

The compressor system is designed around the required suction and discharge pressure conditions and the overall process requirements.

Safety & Monitoring

Instrumentation, alarms, shutdown logic, pressure protection, and hydrogen detection interfaces can be incorporated into the package according to the project requirements.

Skid-Mounted Hydrogen Compression Advantage

A skid-mounted configuration offers a practical solution for projects requiring an integrated and organized compression package.

Compact Installation: Major equipment and supporting systems are arranged on a common skid to optimize installation space.

Simplified Transportation: The packaged design allows the system to be transported as an integrated module, subject to project-specific logistics.

Reduced Site Fabrication: Pre-assembled piping, instrumentation, and equipment can reduce the amount of field fabrication required.

Faster Installation: Integrated package construction can simplify mechanical and electrical installation at the project site.

Integrated Controls: Instrumentation and control systems can be incorporated into the package for centralized monitoring and operation.

Easy Maintenance: Equipment layout can be engineered to provide practical access for inspection and servicing.

Safety & Control Systems

Safety is a critical consideration in hydrogen compression applications. Aegis Projects can integrate appropriate monitoring and protection systems based on the project design and applicable requirements.

These may include:

• Hydrogen leak detection
• Pressure monitoring
• Temperature monitoring
• High-pressure shutdown
• High-temperature shutdown
• Emergency shutdown system
• Pressure relief arrangements
• Compressor protection
• Automatic shutdown logic
• PLC-based control
• Local and remote monitoring
• Alarm and status indication
• Interlocking systems

The final safety architecture is developed according to the equipment configuration, process requirements, applicable codes and standards, and customer specifications.

Customized Hydrogen Compressor Skid Engineering

Hydrogen compression requirements vary significantly between applications. Aegis Projects provides customized engineering based on the actual process conditions rather than using a standard configuration for every project.

Our engineering considerations include:

• Hydrogen gas flow rate
• Hydrogen purity
• Suction pressure
• Discharge pressure
• Compression ratio
• Number of compression stages
• Gas temperature
• Ambient conditions
• Continuous or intermittent operation
• Installation environment
• Control and automation requirements
• Safety requirements
• Space and footprint limitations

This enables us to develop a compressor package aligned with the customer’s specific process and operating requirements.

Integrated Engineering & Project Support

Aegis Projects Technology Pvt. Ltd. provides integrated industrial engineering and project execution support for gas compression applications.

Our scope can include coordination of:

• Mechanical equipment
• Compressor systems
• Gas piping
• Valves and fittings
• Instrumentation
• Electrical systems
• PLC and automation
• Safety systems
• Skid fabrication
• Installation support
• Testing and commissioning

Our integrated approach helps simplify project coordination by bringing multiple elements of the compression package together into a single engineered system.

Why Choose Aegis Projects?

Aegis Projects focuses on delivering application-specific industrial compression and automation solutions designed around customer requirements.

Our capabilities include:

• Customized compressor skid engineering
• Hydrogen gas compression solutions
• Industrial gas compression expertise
• Integrated mechanical and automation systems
• Project-specific equipment selection
• Skid-mounted package development
• Instrumentation and control integration
• Installation and commissioning support
• Technical project assistance
• After-sales support

Get a Customized Hydrogen Gas Compressor Skid

Looking for a Hydrogen Gas Skid Compressor System for your hydrogen production, storage, refueling, industrial, or energy project?

Share your hydrogen flow rate, suction pressure, required discharge pressure, hydrogen purity, operating temperature, duty cycle, and application details with Aegis Projects Technology Pvt. Ltd.

Our engineering team can evaluate your requirements and develop a suitable Hydrogen Compressor Skid Package for your application.

Aegis Projects Technology Pvt. Ltd. – Engineered Gas Compression & Industrial Automation Solutions.
