Description

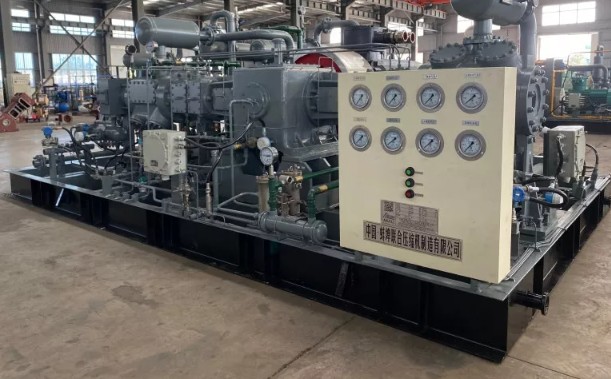

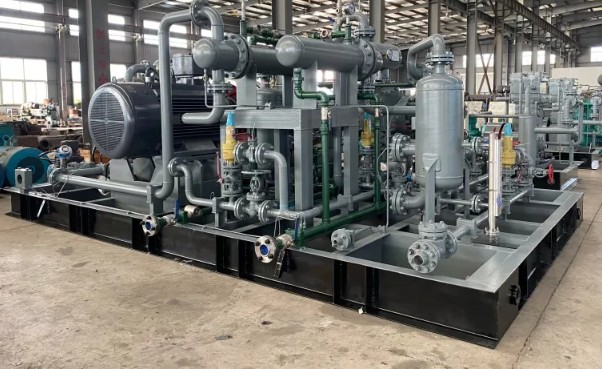

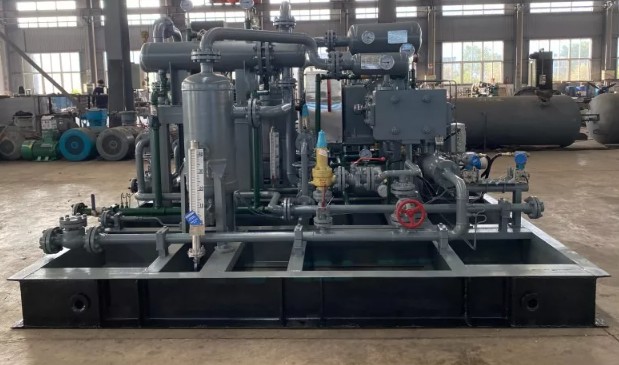

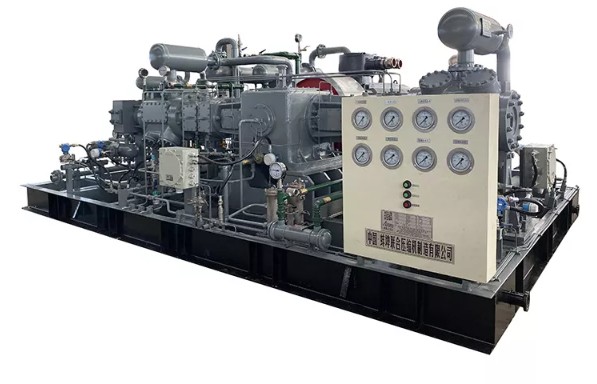

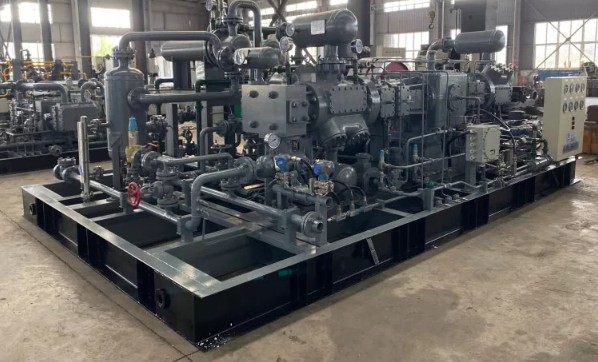

DW-6.8 (1.5-2.5)-33 Hydrogen Compressor for Energy Storage Systems
The DW-6.8 (1.5-2.5)-33 Hydrogen Compressor is designed for hydrogen boosting in energy storage systems, renewable energy projects, and industrial hydrogen utilization processes.
Different from high-pressure hydrogen filling compressors, this model focuses on increasing hydrogen pressure from low-pressure sources to meet the requirements of storage, circulation, and downstream utilization systems.
The compressor is suitable for pure hydrogen compression with a flow capacity of 980 Nm³/h. It operates with an inlet pressure of 0.15~0.25 MPa.G and increases hydrogen pressure up to 3.3 MPa.G. Driven by a 132 kW motor, unit adopts a water-cooled reciprocating piston compression system for continuous industrial operation.
With its medium-capacity hydrogen handling capability, the DW-6.8 (1.5-2.5)-33 provides a practical compression solution for hydrogen energy storage facilities, hydrogen production projects, and industrial hydrogen supply systems.
Design Features
Suitable for Low-Pressure Hydrogen Boosting
The compressor is designed for hydrogen sources with relatively low inlet pressure, providing efficient pressure increase for storage and utilization systems.
Reciprocating Piston Compression Technology
The piston compression structure provides stable gas displacement and is suitable for continuous hydrogen boosting processes.
Water-Cooled Operation
The cooling system helps maintain operating temperature during long-duration compression service.
Balanced Mechanical Structure
The symmetrical balanced design helps reduce vibration during operation and improves mechanical stability.
Engineering Advantages
| | | |
| Designed specifically for hydrogen energy storage applications | Suitable for continuous hydrogen circulation and boosting processes | Supports medium-capacity hydrogen handling requirements | Provides reliable pressure control between hydrogen production and utilization systems |
Hydrogen Energy Storage Compression Application
In hydrogen energy systems, compressors are required to connect hydrogen production, storage, and utilization processes.
The DW-6.8 (1.5-2.5)-33 is mainly applied where hydrogen pressure needs to be increased before entering storage equipment or downstream processes.
Typical applications include:
• Hydrogen storage systems
• Renewable energy hydrogen projects
• Hydrogen circulation systems
• Industrial hydrogen supply networks
• Hydrogen utilization facilities
- Structural form: D-type/M-type/S-type/W-type/V-type/Z-type
- Cooling method: water cooling/air cooling/mixed cooling
- Installation form: fixed/mobile/pry mounted/cabin type
- Drive mode: motor drive/diesel engine start
- Transportation: sea/air/land
Technical Parameter
| No. | Model | Medium | Flow rate
(Nm3/h) | Exhaust pressure
(MPa.G) | Motor power
(kW) | Cooling method | Overall dimensions
(mm) | Weights
(kg) |
| 1 | DW-1.6/(8～12)-120 | Hydrogen | 800 | 12 | 160 | Water-cooled | 5800×3000×2300 | 8500 |
| 2 | DW-1.8/15-30 | Hydrogen | 1500 | 3.0 | 75 | Water-cooled | 3200×3000×1850 | 5800 |
| 3 | DW-6.74(3.3)/0.7(5～12)-12 | Hydrogen | 600 | 1.2 | 90 | Water-cooled | 5000×3200×2100 | 8000 |
| 4 | DW-17.9/(4～5)-6.5 | Hydrogen | 1270 | 0.65 | 132 | Water-cooled | 3500×3000×2300 | 8000 |
| 5 | DW-1.8/15-30 | Hydrogen | 1500 | 3.0 | 75 | Water-cooled | 3200×3000×1850 | 5800 |
| 6 | DW-9.55/0.03-16 | Hydrogen | 515 | 1.6 | 90 | Water-cooled | 3500×3200×2500 | 6500 |
| 7 | DW-96.5/（ 15～23 ）-（ 21~29） | Hydrogen | 4500 | 2. 1～2.9 | 185 | Water-cooled | 5000×3000×2500 | 12000 |
| 8 | DW-48/（ 15～23 ）-（ 21~29） | Hydrogen | 2642～4500 | 2. 1～2.9 | 55 | Water-cooled | 4000×2700×2300 | 6000 |
| 9 | D-0.57/16-200 | Hydrogen | 500 | 20 | 75 | Water-cooled | 5800×3200×2350 | 9000 |
| 10 | ZW-0. 18/15-22 | Hydrogen | 150 | 2.2 | 11 | Water-cooled | 2200×1600×1700 | 2000 |
FAQ
What is the DW-6.8 (1.5-2.5)-33 Hydrogen Compressor mainly used for?
It is mainly used for hydrogen boosting in energy storage systems, hydrogen utilization projects, and industrial hydrogen supply applications.
What are the operating parameters of this hydrogen compressor?
The compressor handles 980 Nm³/h hydrogen gas, with an inlet pressure of 0.15~0.25 MPa.G and a discharge pressure of 3.3 MPa.G.
Why is reciprocating compression suitable for hydrogen systems?
Reciprocating piston compressors are suitable for hydrogen applications requiring stable pressure increase and continuous gas handling.
Can this compressor be customized?
Yes. The configuration can be adjusted according to hydrogen flow rate, pressure requirements, cooling conditions, and installation requirements.
