Description

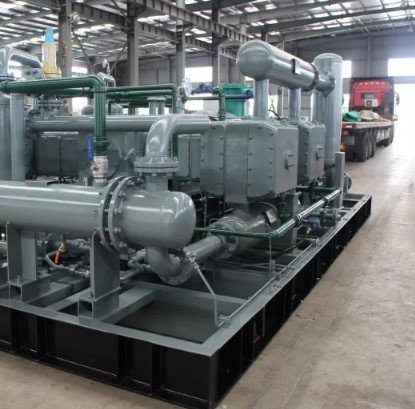

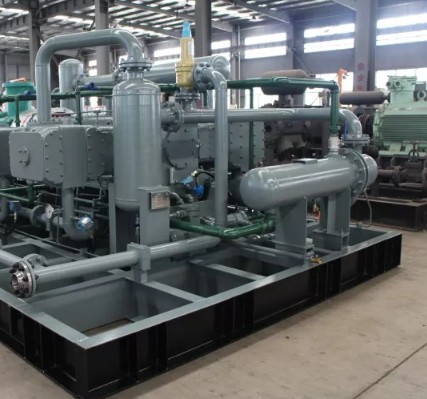

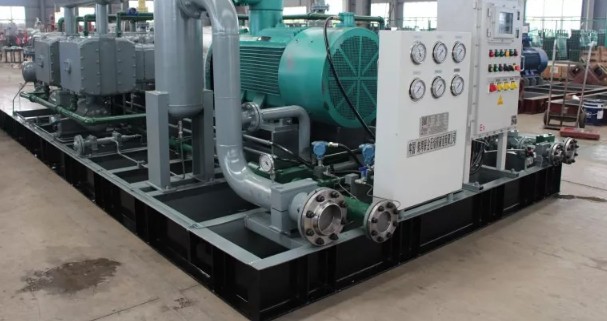

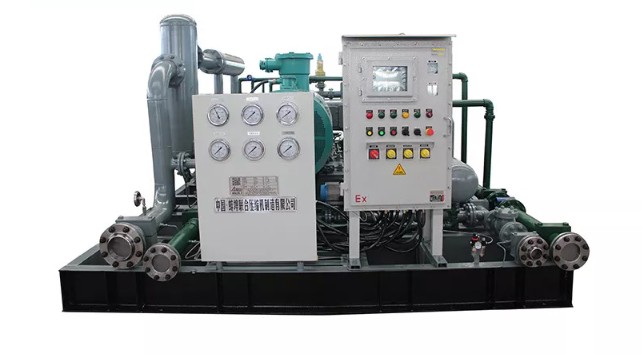

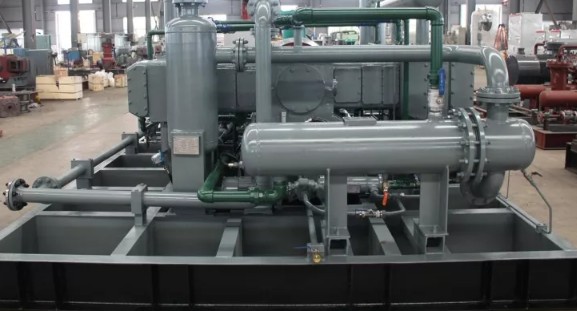

MW-17.4 / (0.1–0.2)–26 Natural Gas Compressor
The MW-17.4 compressor is designed for natural gas with a composition of 18% N₂ and 82% CH₄. It has a capacity of 1044 Nm³/h, inlet pressure of 10–20 kPa(G), inlet temperature of -20 to 40°C, and discharge pressure of 2.6 MPa(G). The unit is driven by a 200 kW motor and is suitable for stable medium-pressure gas compression applications.
Applications
Natural gas compressors are widely used in:
- Urban gas pipeline boosting systems
- CNG refueling stations
- Vehicle fuel supply systems
- Oilfield gas injection and pressure maintenance
- Gas storage peak shaving systems
- Industrial natural gas transmission networks
These compressors ensure stable pressure control, efficient gas transmission, and reliable long-term operation in gas supply and energy infrastructure systems.
Technical Parameter
| No. | Model | Medium | Flow rate
(Nm3/h) | Exhaust pressure
MPa | Motor power
(kW) | Cooling method | Overall dimensions
(mm) | Weights
(kg) |
| 1 | VW-3.5/1-18 | Natural gas | 420 | 1.8 | 55 | Closed water coole | d 4000×1800×2200 | 5000 |
| 2 | DF-0.4/（2～6）-250 | Natural gas | 160 | 25 | 30 | Air-cooled | 2800×1800×1500 | 3500 |
| 3 | DFD-1.36/(30～50)-250 | Natural gas | 4167 | 25 | 315 | Air-cooled | 8500×3700×4100 | 22000 |
| 4 | DFW-3.7/(8～12)-52 | Natural gas | 2083 | 5.2 | 200 | Air-cooled | 6000×3400×2300 | 15000 |
| 5 | DFW-5.3/3-15 | Natural gas | 1100 | 1.5 | 90 | Air-cooled | 6500×3000×2500 | 6000 |
| 6 | DFWD-5.7/(0. 1～0.5)-40 | Natural gas | 75～365 | 4 | 90 | Air-cooled | 7000×3400×2500 | 100000 |
| 7 | DFWD-5/(1.5～3.6)-14.2 | Natural gas | 700 | 1.42 | 90 | Air-cooled | 5000×3200×2200 | 6500 |
| 8 | DW-9/3-35 | Natural gas | 2000 | 3.5 | 250 | Air-cooled | 4800×4000×2000 | 13000 |
| 9 | MFWD-7/(10～30)-35 | Natural gas | 6250 | 3.5 | 315 | Air-cooled | 6300×3200×3200 | 16000 |
| 10 | VF-1.4/(5～7)-250 | Natural gas | 500 | 25 | 110 | Air-cooled | 5000×2400×2100 | 6800 |
| 11 | VF-2.2/（0.5～0.7）-60 | Natural gas | 180 | 6 | 45 | Air-cooled | 6000×2500×2400 | 8000 |
| 12 | VWF-1.65/(25～35)-50 | Natural gas | 2500 | 5 | 90 | Air-cooled | 4500×2500×2100 | 5500 |
| 13 | VWF-11/（0.5～2）-14 | Natural gas | 1000 | 1.4 | 160 | Air-cooled | 5200×2000×2200 | 6000 |
| 14 | VWF-13.6/(0.05～0.2)-6 | Natural gas | 800 | 0.6 | 90 | Air-cooled | 5000×2200×2200 | 6000 |
FAQ
Can the compressor be customized for different project requirements?
Yes. The compressor can be fully customized based on flow rate, inlet and discharge pressure, gas composition, and operating conditions. It is suitable for different applications such as gas pipelines, CNG stations, and oilfield gas recovery, with options for different structures, cooling systems, installation types, and drive methods.
What cooling systems are available?
We provide air cooling, water cooling, and hybrid cooling options. The selection depends on site conditions, ambient temperature, and project requirements to ensure stable and efficient operation.
What applications are these compressors used for?
Natural gas compressors are mainly used for pipeline pressure boosting, CNG refueling stations, oil and gas field gas recovery, and storage tank peak shaving systems, helping ensure stable gas supply and efficient transmission.
