Description
What Is a Distance Piece?

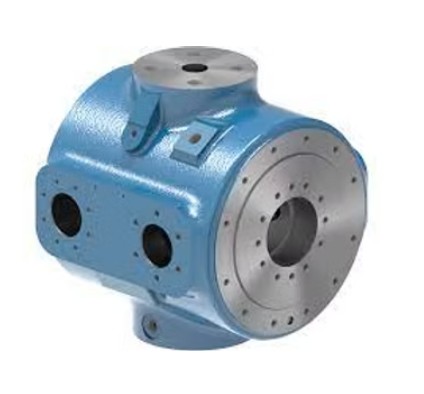

A distance piece is a housing or spacer assembly positioned between the compressor cylinder and crankcase.
A typical reciprocating compressor arrangement can be represented as:
Cylinder → Distance Piece → Crosshead → Crankcase
Depending on the compressor design, the distance piece may contain or interface with:
- Piston rod packing
- Oil scraper arrangements
- Vent connections
- Drain connections
- Inspection/access openings
- Crosshead components
- Lubrication separation arrangements
- Gas leakage containment arrangements
The exact construction varies according to the compressor manufacturer and application.
Functions of a Distance Piece
1. Separates Cylinder and Crankcase
The distance piece provides physical separation between the gas compression area and the crankcase mechanism.
2. Houses Sealing Components
Depending on the compressor design, packing cases and related sealing components may be installed within or connected to the distance piece.
3. Controls Gas Migration
In gas compressors, the distance piece forms part of the controlled separation arrangement that helps prevent unwanted migration of compressed gas toward the crankcase.
4. Controls Lubricant Migration
The arrangement can also help prevent crankcase oil from migrating toward the cylinder and process gas area.
5. Provides Crosshead Clearance
The distance piece provides the required space for movement and access around the piston rod and crosshead assembly.
6. Provides Drainage and Venting
Depending on the design, dedicated connections may be provided for drainage, venting, leakage collection, or monitoring.
Distance Piece Construction
Distance pieces are manufactured according to the compressor’s mechanical configuration and operating requirements.
Important design considerations may include:
- Overall dimensions
- Cylinder-to-crankcase spacing
- Piston rod diameter
- Crosshead dimensions
- Packing arrangement
- Gas pressure
- Temperature
- Material compatibility
- Vent and drain connections
- Mounting arrangement
- Access requirements
- Structural loading
The replacement distance piece should match the original compressor design and should not be selected only on the basis of external dimensions.
Distance Piece for Gas Compressors
Distance pieces are particularly important in reciprocating gas compressors because the compressed medium must be separated from the crankcase and lubrication system.
Applications can include compressors handling:
- Natural Gas
- CNG
- Hydrogen
- Nitrogen
- Oxygen, where specifically designed
- Process Gas
- Hydrocarbon Gas
- Refinery Gas
- Chemical Process Gas
- Other industrial gases
For hazardous, toxic, corrosive, or high-pressure gases, the distance piece, packing, venting, drainage, and sealing arrangement must be selected according to the complete compressor design.
Distance Piece and Packing System
The distance piece commonly works together with the piston rod packing system.
A simplified arrangement is:
Cylinder → Packing Case → Distance Piece → Crosshead → Connecting Rod → Crankshaft
The packing system limits the movement of gas along the piston rod.
The distance piece provides the surrounding space and structural interface required for the packing arrangement and associated leakage management.
Depending on the compressor design, the distance piece may incorporate separate compartments for:
- Cylinder-side packing
- Oil scraper
- Intermediate leakage collection
- Venting
- Drainage
The exact arrangement depends on the original compressor engineering design.
Distance Piece for Oil-Free Compressors
Distance pieces are especially relevant to oil-free reciprocating compressors, where separation between the gas compression section and crankcase lubrication system is important.
In such applications, the distance piece may form part of a multi-compartment arrangement designed to help manage:
- Process gas leakage
- Packing leakage
- Oil migration
- Drainage
- Venting
- Crosshead movement
Proper design and maintenance of the distance piece and associated packing system can help maintain the intended separation between the process and crankcase sides.
Inspection and Maintenance
During compressor overhaul, the distance piece should be inspected for:
- Cracks
- Corrosion
- Deformation
- Damaged mounting surfaces
- Worn interfaces
- Damaged threads
- Damaged vent connections
- Damaged drain connections
- Packing housing wear
- Oil accumulation
- Gas leakage indications
- Abnormal contact marks
Associated packing and sealing components should also be inspected whenever the distance piece is removed or serviced.
Signs of Distance Piece or Associated Assembly Problems
Problems in the distance-piece area may be associated with:
- Excessive piston rod packing leakage
- Oil migration toward the cylinder
- Gas leakage toward the crankcase
- Abnormal oil accumulation
- Leakage from vent or drain connections
- Packing temperature increase
- Unusual contamination
- Abnormal vibration or contact
- Damaged sealing surfaces
These symptoms can also originate from packing, piston rod, alignment, lubrication, or other compressor components, so proper inspection is recommended before component replacement.
Replacement Distance Pieces
Aegis Projects can support replacement requirements for distance pieces based on available compressor information and original component specifications.
Replacement may be required because of:
- Mechanical damage
- Corrosion
- Cracking
- Distortion
- Wear
- Damaged sealing interfaces
- Damaged mounting surfaces
- Compressor modification
- Major overhaul
- Long-term service deterioration
For critical compressor systems, dimensional and material requirements should be verified before manufacturing or procurement.
Distance Piece Selection Information
For accurate identification of a replacement distance piece, the following information is recommended:
| Parameter | Required Information |
|---|---|
| Compressor Make | Manufacturer / Brand |
| Compressor Model | Exact model number |
| Serial Number | Compressor serial number |
| Part Number | Existing distance piece part number |
| Cylinder Number | Applicable cylinder / stage |
| Distance Piece Type | Existing configuration |
| Overall Dimensions | Length, width and height |
| Piston Rod Diameter | Rod size |
| Crosshead Type | Applicable crosshead configuration |
| Packing Arrangement | Packing type / configuration |
| Gas | Working medium |
| Suction Pressure | Operating pressure |
| Discharge Pressure | Operating pressure |
| Operating Temperature | Relevant temperature |
| Lubrication | Oil-free or lubricated |
| Vent Connections | Size and location |
| Drain Connections | Size and location |
| Material | Existing specification, if available |
| Drawing | Original drawing, if available |
Providing the compressor make, model, serial number, photographs, existing part number, and dimensional drawings can help identify the correct distance piece.
Applications
Distance pieces are used in reciprocating compressor systems for:
- Natural Gas Compression
- CNG Compression
- Hydrogen Compression
- Industrial Gas Compression
- Process Gas Compression
- Oil & Gas
- Chemical Processing
- Petrochemical Plants
- Refineries
- Gas Processing
- Gas Storage
- Power Generation
- Industrial Manufacturing
Related Reciprocating Compressor Spare Parts
Aegis Projects can also supply or support associated components such as:
- Cylinders
- Pistons
- Piston Rods
- Piston Rings
- Rider Rings
- Packing Rings
- Oil Scraper Rings
- Packing Cases
- Crossheads
- Crosshead Shoes
- Connecting Rods
- Crankshafts
- Bearings
- Cylinder Valves
- Valve Plates
- Gaskets
- Seals
- Intercoolers
- Aftercoolers
- Pulsation Dampeners
- Lubrication Components
Aegis Projects – Reciprocating Compressor Spare Parts
Aegis Projects Technology Pvt. Ltd. provides industrial reciprocating compressor spare parts and replacement components for compressor maintenance, overhaul, and refurbishment requirements.
Our distance-piece supply and replacement support can be based on OEM part numbers, compressor model and serial number, original drawings, component dimensions, photographs, samples, and application requirements.
For gas compression applications, correct distance-piece selection should consider the complete piston rod, packing, venting, drainage, lubrication, and gas containment arrangement rather than treating the distance piece as an isolated component.
Contact Aegis Projects Technology for distance pieces, reciprocating compressor spare parts, replacement components, and application-specific technical assistance.
