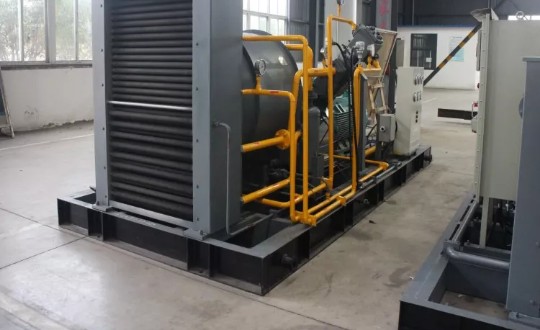

Three-Stage CNG Compressor skid for Refueling Stations - 25MPa

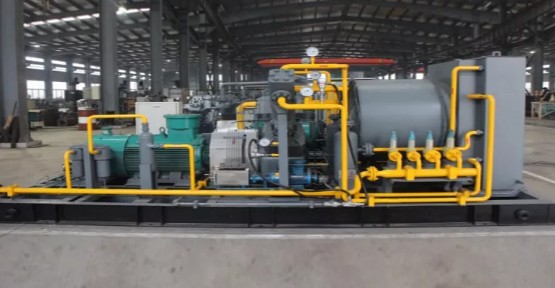

Three-Stage CNG Compressor skid for Refueling Stations - 25MPa - Image 2

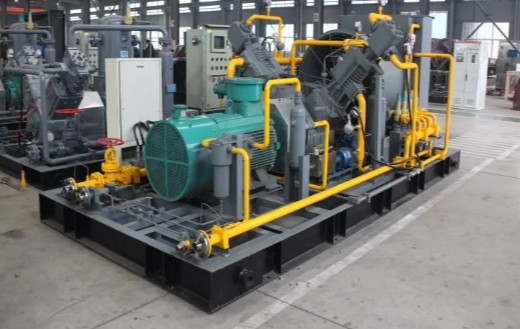

Three-Stage CNG Compressor skid for Refueling Stations - 25MPa - Image 3

Three-Stage CNG Compressor skid for Refueling Stations – 25MPa

Gas composition (mol%): natural gas
Flow rate: 500Nm ³/h
Inlet pressure: 0.5-0.7MPa. G;
Inlet temperature: normal temperature
Exhaust pressure: 25MPa. G;
Main motor power: 110kW
Overall dimensions of the machine: ~5500 × 2200 × 2000 mm
Whole machine weight: ~7T
↗Send Inquiry
Request technical details, pricing and availability from our engineering team.
Categories: , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

Application Area

This natural gas piston compressor is mainly used for pipeline boosting and gas transmission systems. It is also applied in oil and gas fields, chemical gas pressurization, pharmaceutical and brewing processes, food packaging industries, and industrial dust removal systems.

  • Structural form: D-type/M-type/S-type/W-type/V-type/Z-type
  • Cooling method: water cooling/air cooling/mixed cooling
  • Installation form: fixed/mobile/pry mounted/cabin type
  • Drive mode: motor drive/diesel engine start
  • Transportation: sea/air/land

Technical Parameter

No.ModelMediumFlow rate
(Nm3/h)		Exhaust pressure
MPa
（G)		Motor power
(kW)		Cooling methodOverall dimensions
(mm)		Weights
(kg)
1VF（D）-0.32/(30-200)-250Natural gas15002575Air-cooled5538*2350*24389.5
2VF(D)-0.26/(30-200)-250Natural gas100025555538*2350*24389.5
3ZFD-0. 1/(30-200)-250Natural gas50025376500*2350*24505.5
4DFD-3[0.28]/(2-4)[25-200]-250Natural gas130025754050*3450*210012.5
5MF-4/(7-11)-250Natural gas1900-2880~355Air-cooled or
water-cooled		6250*3200*340018
6DF-2/(10-15)-250Natural gas1320-1920~2506000*3200*340016
7MF-3.2/(8-16)-250Natural gas1700-3260~3556250*3200*340018
8MF-2.5/(14-25)-250Natural gas2250-3900~3556450*3200*340020
9DF-1.55/(15-25)-250Natural gas1500-2400~280600*3200*340016
10DF-1.45/(20-35)-250Natural gas1800-3100~2806050*3200*340016
11MF-2/(20-30)-250Natural gas2500-3700~3556250*3200*340020
12MF-1.8/(25-40)-250Natural gas2800-4400~3556250*3200*340018
13MF-1.35/(30-45)-250Natural gas2500-3700~3156000*3200*340018
14DF-1.3/(8-16)-250Natural gas700-1320~1606000*3200*340018
15MF-1.5/(40-60)-250Natural gas3700-5500~3556250*3200*340016
16MF-1.3/(50-85)-250Natural gas3900-6700~3556250*3200*340018
