Description
The DFW-3.7/(8~12)-52 D-type air-cooled oil-free reciprocating compressor from Bengbu United Compressor adopts modular 2-row 3-stage compression for natural gas treatment.
It handles 50000-70000 Nm³/d gas, with 0.8~1.2MPa.G inlet, 5.2MPa.G discharge and a 200kW motor, fit for oil fields, shale gas and coalbed methane.

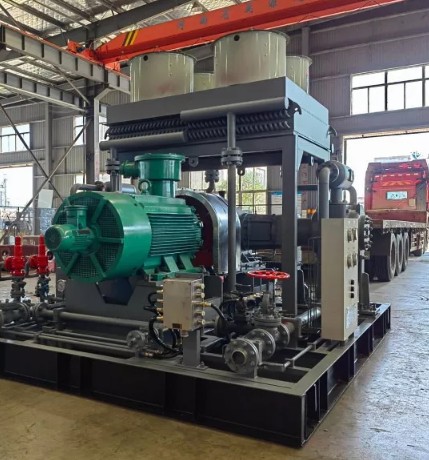

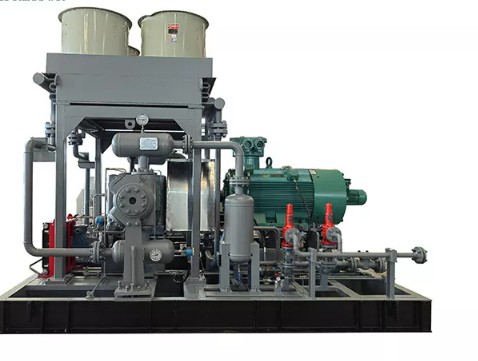

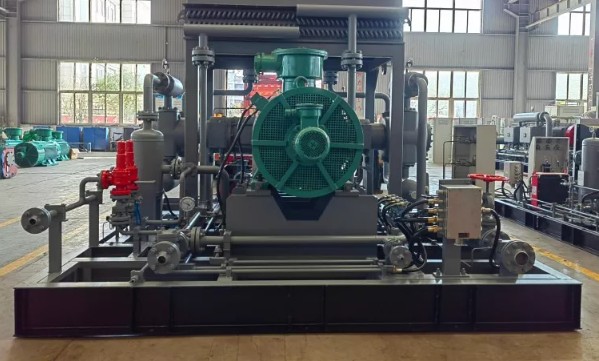

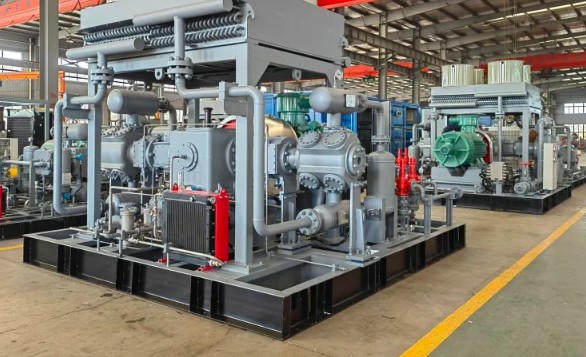

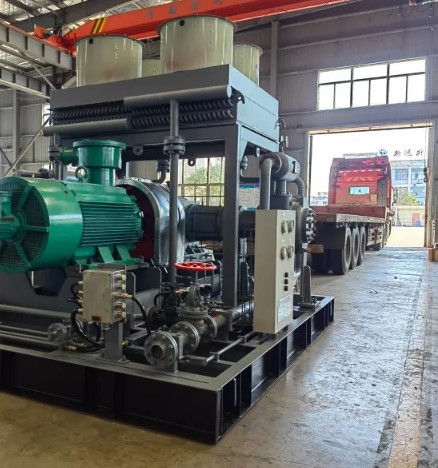

Approx. 6000×3400×2300 mm, around 15T skid-mounted unit, easy to transport and install for gas boosting and associated gas recovery.
Features
High Efficiency & Reliability
This D-type air-cooled oil-free natural gas compressor delivers high-efficiency, stable 24/7 operation. The oil-free system guarantees pure gas output without medium contamination, ideal for pipeline and field gas treatment. Automatic operation reduces manual errors and energy consumption.
Low Maintenance & Operational Ease
Built with fewer wearing parts, the unit features low vibration and low noise. Its gray cast iron crankcase comes with complete service ports for oil draining and temperature monitoring, enabling easy daily maintenance and lowering operating costs.
Skid-Mounted Design for Easy Deployment
All core and auxiliary parts are pre-integrated on one skid. It requires no complicated assembly, supporting fast installation and commissioning. Flexible for deployment in oilfields, remote sites and pipeline stations.
Patented Innovations
Equipped with multiple professional patents including piston rod protection, piston ring support and double-compartment structure. Exclusive patented structures greatly improve operational stability and extend the compressor’s service life.
Application Area
Oil & gas field compressors handle wellhead pressurization, gas gathering and associated gas recovery, fit for conventional gas, shale gas and coalbed methane.
As core pipeline equipment, this D-type unit supplies multi-stage pressurization to offset pipeline pressure loss for long-distance natural gas transport.
Highlight Advantages
| | | |
| Has high efficiency, strong reliability, and high degree of automation; | Less vulnerable parts, low vibration, low noise, and easy operation and maintenance | The main and auxiliary equipment of the compressor are all installed on the sled, running smoothly and reliably. The overall sled installation is convenient for the transportation and installation of the compressor | The entire machine components are carefully designed |
Whole Machine Description
This D-type symmetrical balanced reciprocating compressor is air-cooled, oil-free, 2-row 3-stage compression with modular delivery.
Gray cast iron crankcase reserves multiple ports for oil filling, draining, level observation and temperature detection, fitted with an external manual drain ball valve.
Double middle body blocks lubricant from polluting gas medium. Cast iron/forged steel cylinder and cylinder head adopt oil-free design with axially arranged air valves.
- Structural form: D-type/M-type/S-type/W-type/V-type/Z-type
- Cooling method: water cooling/air cooling/mixed cooling
- Installation form: fixed/mobile/pry mounted/cabin type
- Drive mode: motor drive/diesel engine start
- Transportation: sea/air/land
Technical Parameter
| No. | Model | Medium | Flow rate
(Nm3/h) | Exhaust pressure
MPa | Motor power
(kW) | Cooling method | Overall dimensions
(mm) | Weights
(kg) |
| 1 | VW-3.5/1-18 | Natural gas | 420 | 1.8 | 55 | Closed water coole | d 4000×1800×2200 | 5000 |
| 2 | DF-0.4/（2～6）-250 | Natural gas | 160 | 25 | 30 | Air-cooled | 2800×1800×1500 | 3500 |
| 3 | DFD-1.36/(30～50)-250 | Natural gas | 4167 | 25 | 315 | Air-cooled | 8500×3700×4100 | 22000 |
| 4 | DFW-3.7/(8～12)-52 | Natural gas | 2083 | 5.2 | 200 | Air-cooled | 6000×3400×2300 | 15000 |
| 5 | DFW-5.3/3-15 | Natural gas | 1100 | 1.5 | 90 | Air-cooled | 6500×3000×2500 | 6000 |
| 6 | DFWD-5.7/(0. 1～0.5)-40 | Natural gas | 75～365 | 4 | 90 | Air-cooled | 7000×3400×2500 | 100000 |
| 7 | DFWD-5/(1.5～3.6)-14.2 | Natural gas | 700 | 1.42 | 90 | Air-cooled | 5000×3200×2200 | 6500 |
| 8 | DW-9/3-35 | Natural gas | 2000 | 3.5 | 250 | Air-cooled | 4800×4000×2000 | 13000 |
| 9 | MFWD-7/(10～30)-35 | Natural gas | 6250 | 3.5 | 315 | Air-cooled | 6300×3200×3200 | 16000 |
| 10 | VF-1.4/(5～7)-250 | Natural gas | 500 | 25 | 110 | Air-cooled | 5000×2400×2100 | 6800 |
FAQ
What is the main application of the DFW-3.7/(8~12)-52 Natural Gas Compressor?
This D-type natural gas compressor serves oil & gas fields and long-distance pipelines for wellhead pressurization, associated gas recovery, shale gas and coalbed methane exploitation.
Can the compressor be customized for specific project needs?
Yes. Customizable flow, pressure, gas purity, with optional structures, cooling, installation and drive modes for various field conditions.
What materials are used in key components of the compressor?
Gray cast iron crankcase; cast iron/forged steel cylinder & cylinder head. Double middle body stops oil contamination to keep gas pure.
