Description
What is a Process Cooling Water System?
A Process Cooling Water System is a dedicated cooling-water circulation package designed to remove heat generated by industrial machinery or manufacturing processes.
The system circulates water through the connected equipment and returns the heated water to the cooling package. Heat exchangers can then transfer the process heat away from the circulating water before it is recirculated.
The system can be engineered to maintain the required:
- Water temperature
- Flow rate
- Pressure
- Cooling capacity
- Water quality
This helps water-cooled equipment operate under controlled and stable conditions.
Process Cooling Water Skid Components
Aegis Projects PCW systems can be configured with the following components depending on the application:

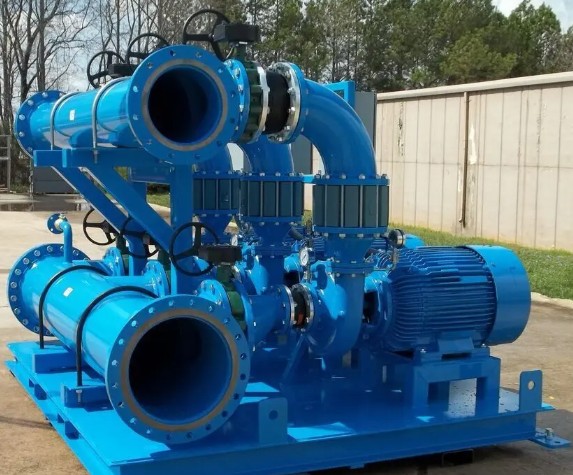

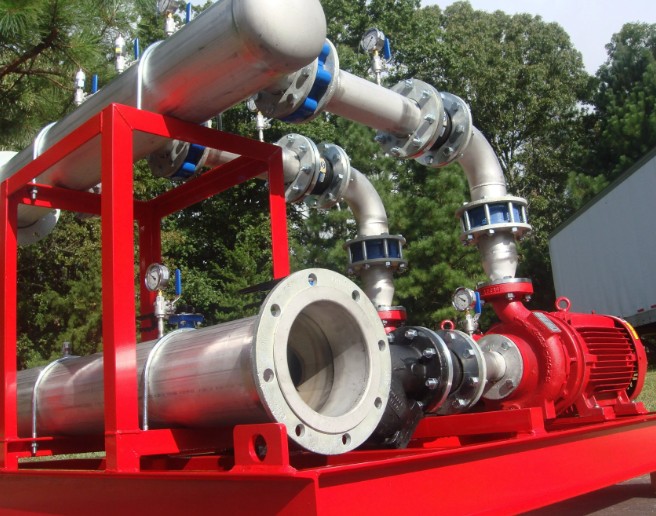

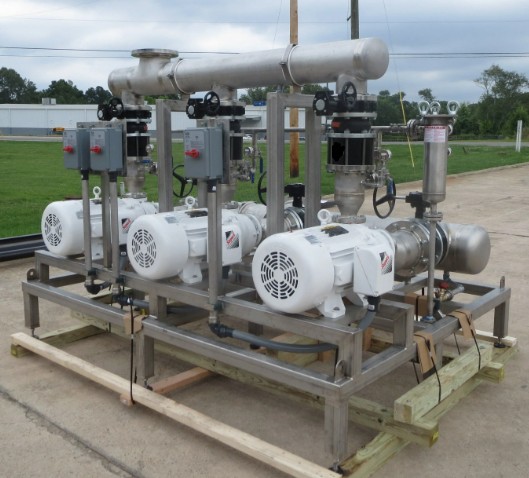

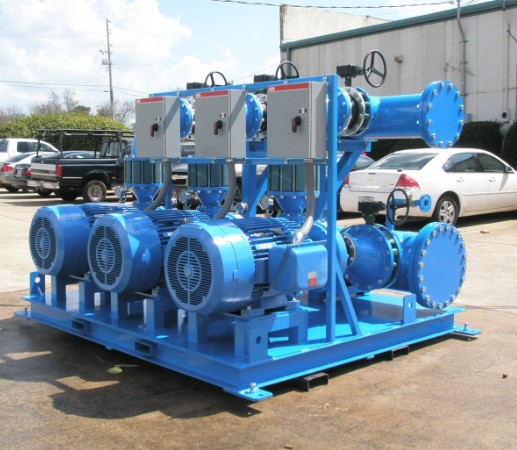

Skid Frame
A fabricated and coated steel skid frame provides structural support for pumps, heat exchangers, piping, valves, instrumentation and control equipment.
Piping Materials
The process cooling system can be configured using appropriate materials such as:
- Powder-coated steel
- Stainless steel
- PVC
- CPVC
Material selection depends on the application, water quality, temperature and project requirements.
Stainless Steel Pumps
Industrial pumps are selected according to the required flow, pressure and system operating conditions.
Pump configuration can be customized according to the required cooling-water circulation duty.
Heat Exchangers
Heat exchangers transfer heat from the process cooling water to the designated cooling medium, allowing the circulating water to return to the required operating temperature.
VFD Pump Controls
Variable Frequency Drives can be incorporated to control pump speed according to system requirements.
VFD control can provide adjustable flow and pressure operation and can be integrated with the system’s automation architecture.
Control Valves
The package can incorporate manual or actuated control valves for isolation and regulation of cooling-water flow.
Electrical Control Panel
A dedicated electrical control panel can be incorporated into the skid package for centralized equipment and automation control.
PLC & Touch-Screen HMI
PLC-based controls with a touch-screen HMI can provide operator control, system monitoring, alarms and automated operation.
Process Cooling Water System Operation
A typical PCW system operates as a recirculating cooling-water loop.
- Cooling water is circulated from the skid to the connected machinery or process equipment.
- The water absorbs heat generated by the equipment.
- Heated water returns to the cooling system.
- The heat exchanger removes heat from the returning water.
- Filtration can be used to help maintain water quality before recirculation.
- The cooled water is returned to the process equipment.
- PLC-based controls monitor and regulate system operating conditions.
The exact system arrangement depends on the process equipment and required cooling conditions.
Filtration & Water Quality
Process cooling water systems can incorporate filtration to help maintain the quality of the circulating cooling water.
Filtration can help reduce unwanted particulate matter within the circulating system and support reliable operation of connected cooling equipment.
The filtration arrangement can be configured according to:
- Water quality
- Process requirements
- Flow rate
- System configuration
- Equipment requirements
For specialized applications such as deionized process cooling water, the system configuration can be adapted to the required water-quality conditions.
Process Cooling Water Applications
Aegis Projects Process Cooling Water Systems can be engineered for a range of industrial cooling applications.
Furnace Cooling Water Systems
PCW systems can provide controlled cooling-water circulation for furnace-related equipment and processes where water cooling is required.
Glycol Cooling Systems
Cooling systems can be configured for applications using glycol-based cooling media where required by the process.
Deionized Process Cooling Water
PCW packages can be designed for deionized process cooling water applications, including open and closed configurations.
Closed Loop Cooling Water
Closed-loop cooling systems continuously circulate cooling water between the process equipment and cooling package.
This arrangement can provide controlled and repeatable cooling conditions for connected machinery.
Water Source Heat Systems
Process water systems can also be configured for applications involving water-source heat systems according to project-specific requirements.
Automated PCW Controls
Process Cooling Water Systems can be supplied with integrated PLC and HMI automation.
The control system can monitor and manage operating parameters such as:
- Cooling-water temperature
- System pressure
- Flow conditions
- Pump operation
- Valve operation
- Heat exchanger operation
- Alarm conditions
- Equipment status
VFD-controlled pumps can be automatically adjusted according to the selected control strategy.
The system can also be designed for integration with an existing plant automation system where required.
Custom Process Cooling Water Solutions
Every manufacturing process has different cooling requirements. Aegis Projects can configure PCW systems around the specific operating conditions of the connected equipment.
Engineering considerations may include:
- Required cooling capacity
- Cooling-water flow rate
- Supply temperature
- Return temperature
- Operating pressure
- Water quality
- Cooling medium
- Heat exchanger requirements
- Pump requirements
- Piping material
- Filtration requirements
- Automation requirements
- Installation environment
The final equipment configuration is selected according to the process and project specifications.
Engineering & Design Standards
Process Cooling Water skid systems can be engineered with consideration for applicable project standards and equipment requirements.
Depending on project scope, engineering may include:
- Piping design
- Structural skid design
- Heat exchanger selection
- Pump selection
- Instrumentation design
- Electrical design
- PLC/HMI control design
- 3D system modelling
- Mechanical and electrical drawings
Applicable codes and standards are determined according to the project requirements, equipment type, installation location and governing regulations.
Factory Assembly & Testing
Where required, PCW skid packages can be assembled and tested before shipment.
Factory testing may include verification of:
- Pump operation
- VFD operation
- Valve operation
- Instrumentation
- PLC controls
- HMI functionality
- Temperature monitoring
- Pressure monitoring
- Flow control
- Alarm functions
- Automation sequences
Factory Acceptance Testing (FAT) can be arranged according to the agreed project requirements.
Benefits of Packaged Process Cooling Water Systems
Controlled Cooling
Provides a controlled supply of cooling water to connected process equipment.
Stable Operating Conditions
Maintains defined temperature, pressure and flow conditions for water-cooled machinery.
Integrated System
Pumps, heat exchangers, filtration, piping, valves and controls can be integrated onto one skid.
Automated Operation
PLC, HMI and VFD systems can provide automatic monitoring and control.
Closed-Loop Capability
Closed-loop configurations allow cooling water to be continuously circulated and conditioned.
Compact Skid-Mounted Design
The integrated skid arrangement provides an organized and compact equipment package.
Simplified Installation
Factory-integrated equipment can reduce site assembly and installation requirements.
Customizable Configuration
The PCW system can be engineered around the specific cooling requirements of the process.
Industries & Applications
Process Cooling Water Systems can be engineered for:
- Manufacturing
- Industrial Machinery
- Metal Processing
- Furnace Systems
- Chemical Processing
- Pharmaceutical
- Food & Beverage
- Process Industries
- Power & Energy
- HVAC & Hydronics
- Industrial Utilities
- Water Treatment
- General Engineering Industries
Process Cooling Water Systems by Aegis Projects Technology
Aegis Projects Technology Pvt. Ltd. provides engineered process cooling, pumping, heat transfer, automation and packaged skid solutions for industrial applications.
Our Process Cooling Water Systems combine cooling-water circulation, heat removal, filtration and automated control into an integrated package designed around the requirements of the connected process equipment.
Whether you require a closed-loop cooling system, glycol cooling system, deionized process cooling water system, furnace cooling water system or customized industrial PCW package, Aegis Projects can develop the system according to your application requirements.
Request a Customized PCW System
Contact Aegis Projects Technology with your required cooling capacity, flow rate, supply/return temperature, operating pressure and water-quality requirements to discuss a customized Process Cooling Water System.
Final pump selection, heat exchanger capacity, materials, flow, pressure, temperature, control architecture and applicable standards are subject to application-specific engineering and project specifications.
