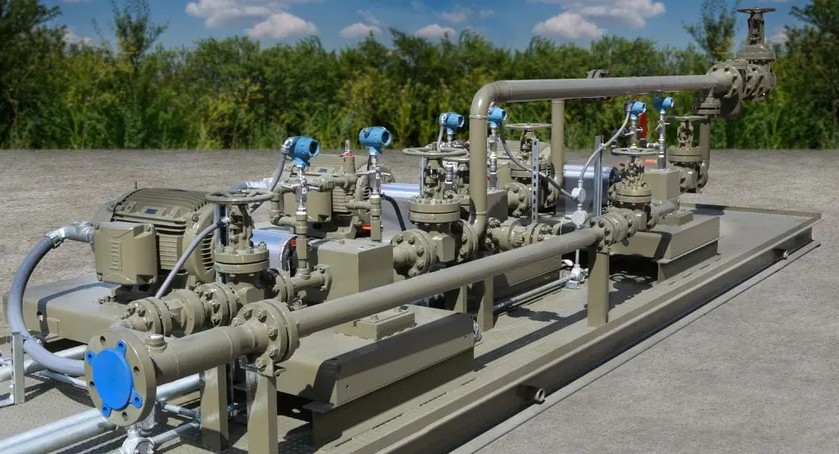

Packaged Pump Skids

Packaged Pump Skids are customized pumping systems developed according to the required flow rate, pressure, fluid characteristics, operating conditions and installation requirements.

A complete skid can incorporate pumps, motors, valves, piping, strainers, instrumentation, control panels and automation equipment into a single engineered package.

These systems help simplify installation and commissioning while providing a controlled and organized pumping solution for industrial facilities.

Typical Applications

• Water transfer and circulation
• Wastewater handling
• Process fluid circulation
• Chemical processing
• Manufacturing plants
• Pulp and paper industries
• Industrial utility systems
• Process fluid transfer
• Plant water systems
• General industrial pumping applications

Heat Exchanger Transfer Skids

Heat Exchanger Transfer Skids are engineered pumping and heat-transfer packages used to circulate process or utility fluids while maintaining controlled temperature conditions.

These systems can separate process fluids from cooling-system fluids and provide controlled circulation between the heat exchanger and the associated process equipment.

The package can be configured according to the required flow, pressure, temperature, heat-transfer duty and process conditions.

Key Features

• Skid-mounted integrated design
• Pump and heat exchanger integration
• Process and cooling-fluid circulation
• Temperature and pressure monitoring
• Valves and associated piping
• Instrumentation and control systems
• HMI and PLC-based automation options
• Integration with existing plant automation
• Customized configuration according to process requirements

Applications

• Manufacturing facilities
• Process cooling systems
• Industrial heat-transfer applications
• Chemical processing
• Process fluid temperature control
• Machinery cooling systems
• Industrial utility systems

Process Cooling Water Systems

Process Cooling Water Systems are skid-mounted pumping packages designed to circulate cooling water at controlled flow, temperature and pressure conditions.

These systems help provide a stable supply of cooling water to water-cooled machinery and manufacturing equipment, supporting consistent operating conditions and efficient plant operation.

The system can be engineered around the cooling requirements of the connected equipment and integrated with plant-level automation.

Typical System Components

• Cooling water pumps
• Electric motors
• Heat exchangers where required
• Water storage or buffer vessels
• Piping and valves
• Temperature sensors
• Pressure instruments
• Flow measurement
• Control panel
• PLC and HMI
• Safety and protection devices

Applications

• Manufacturing machinery cooling
• Industrial process cooling
• Production equipment
• Machine-tool cooling
• Process plants
• Utility cooling systems
• Industrial water circulation

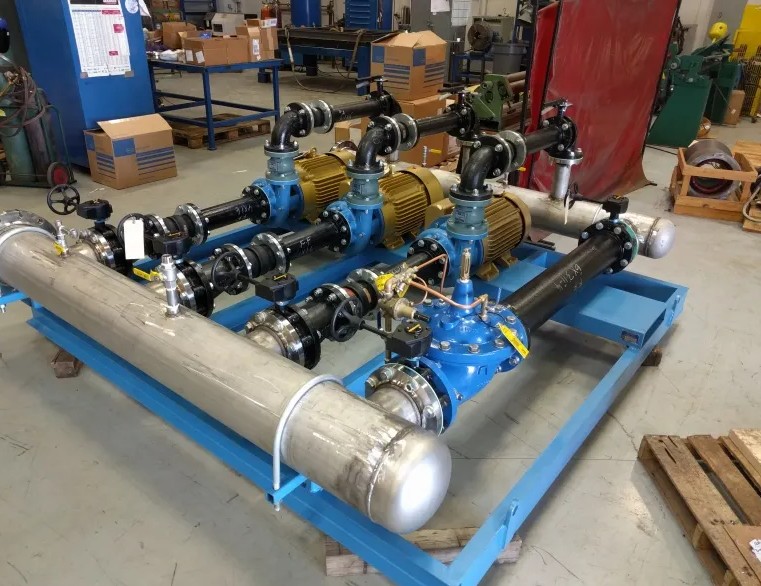

Booster Skid Systems

Booster Skid Systems are packaged pumping systems designed to increase and maintain fluid pressure within industrial and utility networks.

These systems can be engineered for applications where additional pressure or controlled flow is required to overcome system losses, elevation differences or changing process demands.

Aegis Projects can configure booster systems for HVAC, hydronic, boiler feed and general industrial pumping applications.

Applications

• HVAC water circulation
• Hydronic systems
• Boiler feed systems
• Industrial water distribution
• Pressure boosting
• Process water systems
• Utility water networks
• Manufacturing facilities

Booster System Features

• Multiple pump configurations
• Automatic pump sequencing
• Pressure-controlled operation
• Variable-speed drive options
• PLC-based control
• HMI monitoring
• Pressure and flow instrumentation
• Automatic duty/standby operation
• Skid-mounted compact design

Tepid Water Systems

Tepid Water Systems are packaged water supply systems designed to provide clean, warm water for emergency safety equipment such as safety showers and eyewash stations.

The system can receive potable water and store it within a stainless-steel vessel. A heat exchanger can be incorporated to maintain the required water temperature using an appropriate heating medium such as steam.

Typical System Configuration

• Potable water inlet
• Stainless-steel storage vessel
• Circulation pump
• Heat exchanger
• Temperature monitoring
• Pressure instrumentation
• Control panel
• Automatic temperature control
• Safety and isolation valves
• Piping and fittings

Applications

Tepid water systems are suitable for industrial facilities where emergency showers and eyewash stations require a controlled supply of clean, warm water.

Typical industries include:

• Chemical plants
• Pharmaceutical facilities
• Oil & gas facilities
• Petrochemical plants
• Manufacturing plants
• Process industries
• Industrial laboratories
• Hazardous-area facilities

Integrated Automation & Control

Packaged pump skids can be supplied with dedicated automation and control systems or designed for integration into an existing plant control architecture.

Depending on project requirements, the package may include:

• PLC-based control
• HMI operator interface
• Local control panel
• Automatic pump sequencing
• Start/stop control
• Pressure control
• Flow monitoring
• Temperature monitoring
• Level monitoring
• Alarm indication
• Equipment protection
• Emergency shutdown functions
• Remote monitoring and communication
• Integration with existing plant PLC/SCADA systems

The automation architecture can be developed according to the requirements of the individual application and plant control system.

Typical Components of a Packaged Pump Skid

A complete packaged pumping system may include:

The final equipment configuration depends on the required application and project specification.

Custom-Engineered Pumping Solutions

Every packaged pump skid can be configured according to the specific process requirements.

Engineering considerations may include:

• Required flow rate
• Suction pressure
• Discharge pressure
• Fluid type
• Fluid temperature
• Fluid viscosity
• Required pumping head
• Material compatibility
• Pump type
• Motor rating
• Duty/standby requirements
• Cooling requirements
• Automation requirements
• Installation environment
• Available space
• Hazardous-area requirements
• Existing plant interfaces

Aegis Projects can develop the pumping package around the customer’s process requirements rather than relying on a fixed standard configuration.

Skid-Mounted Design

The skid-mounted arrangement combines major equipment into a single engineered package, helping simplify transportation, installation and site commissioning.

Depending on the project, the package can be supplied with:

• Factory-assembled piping
• Pre-installed valves
• Instrumentation
• Electrical control panel
• Pump and motor assembly
• Automation system
• Interconnecting pipework
• Equipment supports
• Lifting and handling provisions

This approach can help reduce the amount of field assembly required after delivery.

Industrial Applications

Aegis Projects packaged pumping systems can be engineered for applications across multiple industrial sectors, including:

• Chemical Processing
• Petrochemical
• Oil & Gas
• Pharmaceutical
• Food & Beverage
• Pulp & Paper
• Water & Wastewater
• Manufacturing
• Power & Energy
• HVAC & Hydronics
• Boiler Systems
• Process Industries
• Industrial Utilities
• General Engineering Plants

Why Choose Aegis Projects Packaged Pump Skids?

Integrated Engineering

Mechanical, piping, electrical, instrumentation and automation requirements can be considered as part of one integrated package.

Customized Configuration

The pump skid can be configured according to the required flow, pressure, temperature, fluid characteristics and plant requirements.

Automation Ready

Systems can be supplied with dedicated PLC/HMI controls or designed for integration with an existing plant automation system.

Factory Assembly

Where specified, major components can be assembled and integrated before shipment to simplify site installation and commissioning.

Compact Skid-Mounted Design

The integrated structure provides an organized arrangement of pumps, piping, valves, instrumentation and controls.

Simplified Installation

Pre-engineered and assembled packages can reduce the amount of site fabrication and equipment integration required.

Application-Focused Engineering

Each system is developed around the process requirements, operating conditions and installation environment of the project.

Aegis Projects Technology

Aegis Projects Technology Pvt. Ltd. provides engineered solutions for industrial fluid handling, process systems, compressed air and gas systems, automation and packaged equipment.

Our packaged pumping solutions can be developed as standalone systems or integrated into larger plant and process systems, depending on project requirements.

From pump selection and skid design to piping, instrumentation, electrical controls and automation integration, the complete package can be engineered around the intended application.

Contact Aegis Projects Technology for a customized packaged pump skid solution based on your required flow rate, pressure, fluid, temperature and operating conditions.

Final pump selection, materials, operating parameters, automation architecture and equipment configuration are subject to application-specific engineering and project specifications.
