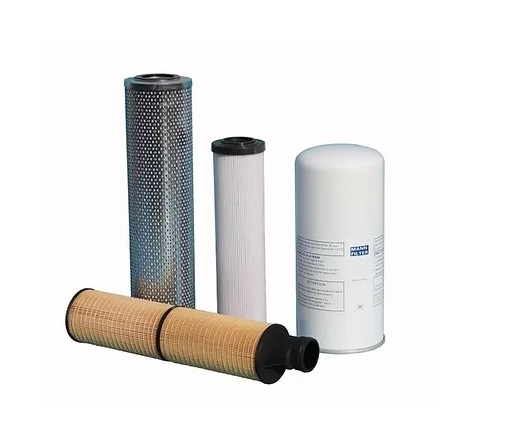

Oil Filter

Description

What Is a Compressor Oil Filter?

An oil filter is a filtration component installed within the compressor lubrication circuit.

Its primary function is to capture contaminants present in the lubricating oil, such as:

• Metal particles
• Dust and dirt
• Carbon deposits
• Wear particles
• Oxidation products
• Other suspended contaminants

The filtered oil is then circulated back through the compressor lubrication system.

Typical Oil Flow

Oil Reservoir / Separator Vessel → Oil Filter → Oil Cooler / Lubrication Circuit → Compressor Air End

The exact oil-flow arrangement varies according to the compressor design.

Key Functions

A compressor oil filter helps:

• Remove contaminants from lubricating oil
• Protect compressor bearings
• Protect rotor and shaft components
• Maintain cleaner lubricating oil
• Support effective compressor lubrication
• Reduce contamination-related wear
• Support stable compressor operation
• Help maintain the compressor lubrication circuit
• Extend the service life of oil-lubricated components

Importance of Oil Filtration

Oil-injected screw compressors depend on continuous circulation of lubricating oil through the air end.

Contaminated oil can affect critical internal components and may contribute to:

• Bearing wear
• Rotor wear
• Reduced lubrication performance
• Increased operating temperature
• Oil circuit contamination
• Increased maintenance requirements
• Premature component failure

Regular oil filter inspection and replacement are therefore important parts of compressor preventive maintenance.

Oil Filter for Rotary Screw Compressors

Oil filters are commonly used in oil-injected rotary screw compressors where compressor oil circulates through the air end and associated lubrication system.

The filter is selected according to the compressor’s:

• Oil flow
• Operating pressure
• Oil type
• Filtration requirement
• Temperature
• Compressor model
• Lubrication circuit design

The correct filter should be compatible with the compressor’s lubrication system and specified operating conditions.

Oil Filter Construction

Depending on the application, a compressor oil filter may consist of:

• Filter housing
• Filtration media
• End caps
• Center tube
• Bypass arrangement where applicable
• Anti-drainback arrangement where applicable
• Sealing gasket
• Threaded mounting connection

The actual construction varies by filter design and compressor manufacturer.

Applications

Compressor oil filters can be used in:

• Rotary screw compressors
• Oil-injected screw compressors
• Industrial air compressors
• Industrial compressed air systems
• Process air compressor packages
• Manufacturing plants
• Automotive production
• Pharmaceutical facilities
• Chemical plants
• Petrochemical facilities
• Power plants
• Textile industries
• Packaging plants
• General industrial utility systems

Replacement Oil Filters

Oil filters should be replaced according to the compressor manufacturer’s recommended maintenance schedule or when operating conditions indicate that replacement is required.

Replacement may be necessary due to:

• Filter contamination
• High differential pressure
• Extended service interval
• Oil system contamination
• Compressor overhaul
• Preventive maintenance
• Compressor refurbishment

A filter that is excessively restricted can affect oil circulation and compressor operation.

Signs of Oil Filter Restriction

Depending on compressor design, a restricted oil filter may be associated with:

• Increased differential pressure
• High oil temperature
• Reduced oil flow
• Compressor alarms
• Abnormal compressor operating conditions
• Increased maintenance requirements

These symptoms can have multiple causes, so proper diagnosis should be carried out before replacing components.

Oil Filter Selection Parameters

The correct oil filter must be matched to the compressor and lubrication system.

Providing the compressor nameplate and existing oil filter information can help with accurate identification.

Oil Filter vs. Oil Separator

An oil filter and an oil separator perform different functions within an oil-injected screw compressor.

Oil Filter:
Filters contaminants from the circulating compressor oil.

Oil Separator:
Separates oil from compressed air after the air and oil mixture leaves the compressor air end.

Both components are important but operate at different points in the compressor system.

Maintenance

Regular maintenance of the oil filtration system can help maintain reliable compressor operation.

Typical maintenance activities include:

• Checking filter condition
• Monitoring differential pressure
• Replacing the filter at the recommended interval
• Inspecting the filter mounting area
• Checking for oil leakage
• Inspecting sealing surfaces
• Using the appropriate compressor lubricant

The filter replacement interval should be determined according to the compressor manufacturer’s recommendations, operating hours, oil condition, and site environment.

Industrial Compressor Spare Parts

Oil filters are part of the wider range of screw compressor spare parts and maintenance components supplied by Aegis Projects Technology.

Related products include:

• Rotary screw elements
• Compression chamber components
• Compressor motors
• Separator vessels
• Air-oil separator elements
• In-suction air filters
• After coolers
• Water separators
• Non-return check valves
• Discharge valves
• System controllers
• Gaskets and seals
• Minimum pressure valves
• Thermostatic valves
• Solenoid valves
• Bearings
• Couplings
• Compressor service kits
• Compressor overhaul kits

Aegis Projects Technology

Aegis Projects Technology supplies oil filters and industrial screw compressor spare parts for compressor maintenance, repair, overhaul, and refurbishment applications.

For accurate oil filter identification, provide the compressor make, model, serial number, existing filter part number, filter dimensions, or a clear photograph of the compressor nameplate and existing filter.
