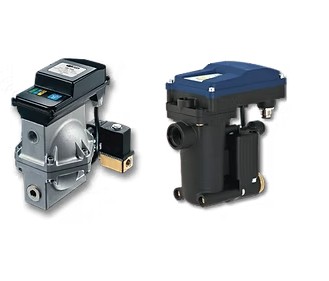

LiquiPro – CE/CDE – Capacitive condensate drain

LiquiPro – CE/CDE – Capacitive condensate drain

Condensate, oil, and other contaminants found in compressed air systems can cause significant harm if not properly eliminated. These pollutants are separated from the compressed air at various places throughout the system, and the condensate drain removes them to guarantee that the compressed air is processed properly. LiquiPro drains with floats enable for the regulated drainage of condensate. A careful selection of materials and an exact design make installation simple and provide years of flawless operation even in harsh situations.

↗Send Inquiry
Request technical details, pricing and availability from our engineering team.
Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

Benefits:

  1. capacitive level sensor for high dependability and accurate control.

  2. Energy conservation: no loss of compressed air;

  3. Simple and durable construction that is not prone to wear

  4. Standard corrosion-resistant body (CE1618 plastic PA 6; CE1624 – CE1658 – CDE2050 aluminum);

  5. The discharge valve has a large diameter aperture.

  6. There is no requirement for initial or seasonal programming.

  7. There is only one spare part required, which reduces maintenance time to a minimum.

Technical Specifications:

  1. Ignition indication The discharger’s LED and alarm state

  2. Clean the alarm contact. Press the discharge test button.

  3. Easily accessible stainless steel filter.

  4. Power supply: 230/1/50-60

  5. Maximum working pressure for CDE 2050 is 20 barg, while EC 1618-1654 has a maximum of 16 barg.

Accessories & Kits:

  1. Optional heating element: CDE 2050. Power supply options include 115/1/50-60 and 24V DC.
