Description

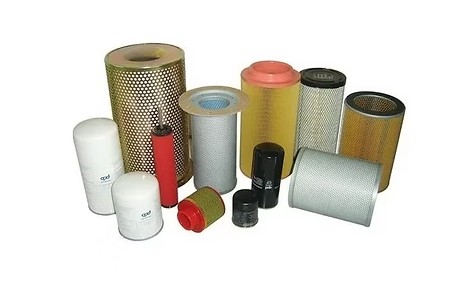

Types of Filter Elements
Air Filter Elements
Air filter elements are installed on the compressor inlet or associated air-intake systems to remove airborne contaminants before air enters the compressor.
They can help protect:
- Compressor impellers
- Air passages
- Diffusers
- Internal components
- Downstream air systems
Air filtration is particularly important in industrial environments where dust, dirt, fibers, and other airborne particles may be present.
Oil Filter Elements
Oil filter elements are used in compressor lubrication systems to remove contaminants from circulating lubricant.
They can help protect:
- Bearings
- Gears
- Shafts
- Lubrication passages
- Oil pumps
- Other lubricated components
Maintaining lubricant cleanliness is important for high-speed rotating equipment.
Demister Elements
Demister elements are designed to separate fine liquid droplets from a gas or air stream.
Depending on the system design, they can be used to remove:
- Oil mist
- Liquid droplets
- Condensate
- Entrained fluids
Demister elements may be incorporated into separators, lubrication systems, or other compressor-associated equipment where liquid carryover needs to be controlled.
Canister Filter Elements
Canister-type filters use a filter element contained within a dedicated housing or canister assembly.
They can be used for:
- Air filtration
- Oil filtration
- Auxiliary-system filtration
- Process filtration
- Contamination control
The filter element is replaced periodically according to the maintenance requirements of the equipment.
Spin-On Filter Elements
Spin-on filters combine the filter element and housing into a replaceable cartridge assembly.
They are designed for convenient replacement during routine maintenance and can be used in suitable lubrication, hydraulic, or auxiliary systems.
Spin-on filters are available in different filtration ratings, connection configurations, sizes, and media types depending on the application.
Functions of Compressor Filter Elements
Filter elements can perform several important functions within a centrifugal compressor system:
- Remove airborne contaminants
- Protect compressor components
- Maintain lubricant cleanliness
- Remove oil particles
- Separate liquid droplets
- Reduce contamination of lubrication systems
- Protect bearings and gears
- Support reliable compressor operation
- Maintain filtration-system performance
- Reduce contamination-related equipment wear
The exact filtration function depends on the filter type and installation location.
Air Intake Filtration
Centrifugal compressors draw significant quantities of atmospheric air during operation.
The air may contain:
- Dust
- Dirt
- Pollen
- Fibers
- Industrial particulates
- Moisture
- Other airborne contaminants
An appropriately selected air filter element helps reduce the amount of contamination entering the compressor.
A contaminated or restricted air filter can increase inlet pressure drop and may affect compressor operating conditions.
Oil Filtration
Where the centrifugal compressor incorporates an oil lubrication system, oil filtration helps control contaminants circulating through the lubrication circuit.
Contamination can originate from:
- Component wear
- Environmental contamination
- Lubricant degradation
- Maintenance activities
- Installation debris
- Oxidation products
Proper filtration helps protect sensitive lubrication components and rotating equipment.
Demister Filtration
Demister elements use a specialized separation medium to capture fine liquid droplets entrained in an air or gas stream.
Depending on the application, the collected liquid can then drain from the separator or associated housing.
Demister performance depends on factors such as:
- Gas velocity
- Droplet size
- Pressure
- Temperature
- Filter media
- Element geometry
- Liquid loading
The demister should therefore be selected according to the specific application.
Filter Media
Different filtration applications require different filter media.
Potential media types may include:
- Synthetic media
- Cellulose-based media
- Fibrous media
- Microfiber media
- Wire mesh
- Specialized separation media
- Application-specific composite media
The appropriate filter media depends on the contaminant type, required filtration efficiency, pressure, temperature, and compressor manufacturer’s specifications.
Filtration Rating
Filter elements can be specified according to their filtration performance and particle-removal requirements.
Selection may consider:
- Particle size
- Filtration efficiency
- Micron rating
- Flow capacity
- Pressure drop
- Dirt-holding capacity
- Operating temperature
- Service life
The required filtration rating should be selected according to the equipment manufacturer’s recommendations and system requirements.
Pressure Drop Across Filter Elements
As contaminants accumulate on a filter element, resistance to flow can increase.
An excessive pressure drop may indicate that the filter element requires inspection or replacement.
Factors affecting pressure drop include:
- Filter media
- Filter area
- Flow rate
- Contaminant loading
- Filter design
- Element condition
- Operating temperature
Monitoring pressure differential across critical filters can help establish appropriate maintenance intervals.
Filter Element Maintenance
Filter elements are consumable maintenance components and should be inspected or replaced according to the compressor manufacturer’s recommendations.
Maintenance may include:
- Checking differential pressure
- Inspecting filter condition
- Checking for contamination
- Inspecting filter housing
- Checking seals and O-rings
- Checking for leakage
- Replacing blocked or damaged elements
- Cleaning reusable components where applicable
- Recording filter replacement intervals
Disposable filter elements should generally be replaced rather than cleaned unless the manufacturer specifically permits cleaning.
Signs of Filter Element Problems
Potential indications of filter element deterioration or blockage include:
- Increased pressure drop
- Reduced airflow
- Increased compressor operating temperature
- Reduced compressor performance
- Lubricant contamination
- Excessive differential pressure
- Visible filter damage
- Air or oil leakage
- Increased maintenance requirements
The actual cause should be confirmed through appropriate inspection and system measurements.
Filter Element Replacement
Aegis Projects can support filter element requirements for:
- Preventive compressor maintenance
- Routine filter replacement
- Compressor overhauls
- Planned shutdowns
- Lubrication-system maintenance
- Air-intake maintenance
- Demister replacement
- Compressor package refurbishment
- Industrial compressed-air system maintenance
Replacement elements should match the original filter specifications or approved engineering requirements.
Filter Element Selection Parameters
| Selection Parameter | Requirement |
|---|---|
| Filter Type | Air, oil, demister, canister, spin-on, etc. |
| Application | Compressor inlet, lubrication, separator, auxiliary system |
| Compressor Make | Original equipment manufacturer |
| Compressor Model | Exact compressor model |
| Flow Rate | Required air/oil/gas flow |
| Filtration Rating | Required particle or droplet removal |
| Pressure | Operating and design pressure |
| Temperature | Normal and maximum operating temperature |
| Pressure Drop | Allowable differential pressure |
| Filter Media | Application-specific media |
| Element Dimensions | Length, diameter, and configuration |
| Connection | Required filter/housing connection |
| Seal | Compatible gasket or O-ring arrangement |
| Housing | Existing filter housing/canister |
| Service Medium | Air, oil, gas, or other specified fluid |
Industrial Applications
Filter elements for centrifugal compressor systems can support equipment operating in:
- Oil & Gas
- Petrochemical
- Chemical Processing
- Power Generation
- Steel Plants
- Cement Plants
- Automotive Manufacturing
- Pharmaceutical Manufacturing
- Food & Beverage
- Textile Industries
- Engineering Industries
- Process Industries
- Manufacturing Plants
- Industrial Utilities
- Large-Scale Compressed-Air Systems
Why Choose Aegis Projects?
Aegis Projects Technology Pvt. Ltd. provides industrial compressor equipment, spare parts, filtration components, automation solutions, and engineering support for compressed-air and process applications.
Our filter element solutions can support:
- Centrifugal compressor air filtration
- Compressor oil filtration
- Demister applications
- Canister filter replacement
- Spin-on filter replacement
- Preventive maintenance
- Compressor overhaul
- Planned shutdown maintenance
- Lubrication-system maintenance
- Compressed-air system servicing
We can assist with filter selection based on the compressor make and model, filter type, existing element part number, dimensions, flow rate, filtration rating, pressure, temperature, filter housing details, and available technical documentation.
Request a Quote
For centrifugal compressor filter elements, provide the compressor make and model, existing filter element part number, filter type, dimensions, filtration rating, photographs, and available technical drawings or datasheets.
Aegis Projects can review the application and assist with suitable air, oil, demister, canister, and spin-on filter element solutions for your centrifugal air compressor system.
