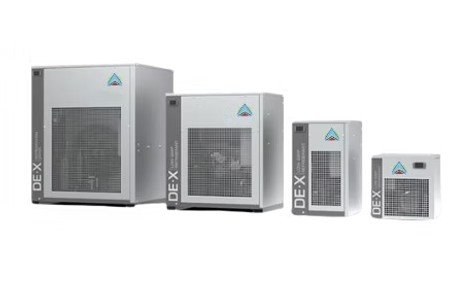

Description
Benefits:
Market-leading pressure decreases, on average below 0.12 bar, result in significant energy savings.
The environmentally beneficial low Global Warming Potential (GWP) refrigerant R513A on DE-X 003-090 has a GWP of just 573.
Aegis projects technology pvt ltd invented and patented the unique 3-in-1 X-MODULE heat exchanger.
Always performs in all conditions, with wide constraints on air inlet temperature, ambient temperature, and maximum pressure.
Field-proven technologies and premium components ensure high reliability.
Installation is simple due to the tiny size, a single connected power source, and full frontal access.
Simple to use: intuitive microprocessor, no need for field adjustments, and minimal maintenance.
There are multiple condensate drain options to meet every user’s needs.
Accurate dew point management across the whole 0-100% load range, with quick response to abrupt peaks.
Low Load Function (LLF) protects against freezing, simplifies seasonal adjustment requirements, and enables standby savings at low ambient temperatures.
Industry 4.0-ready, with numerous remote connectivity options.
Extensive individual factory testing.There are multiple condensate drain options to meet every user’s needs. Accurate dew point management across the whole 0-100% load range, with quick response to abrupt peaks.
Technical Specifications:
Robust heavy-duty housing with galvanized steel panels and RAL7035 epoxy powder coating.
Environmentally friendly refrigerant (R513A for DE-X 004-090 and R410A for DE-X 120-350).
Compressor types include reciprocating (DE-X 003-090), rotary (DE-X 120-140), and scroll (DE-X 180-350).
Hot gas expansion valve.
A calibrated capillary tube.
Compact and durable X-MODULE 3-in-1 aluminum heat exchanger with pre-formed close-fit high density polystyrene insulation.
Low Load Function (LLF) compressor management.
Air-cooled condenser available in tubeless (DE-X 003-027) and finned coil (DE-X 032-350) variants; DE-X 003-027 includes a standard protective coating.
An axial fan.
The microprocessor controller features a multi-icon display, numerical dew point readout, multiple alarms with alarm history function, maintenance schedule, and full password protected programmability.
General alarm volt-free contact.
Contact to turn on/off remotely.
Automatic restart.
Configurations include a programmable timed drain, a Smart zero-loss electronic drain (DE-X 003-060), or a sensor-activated zero-loss electronic drain with a visible alarm (and a remote alarm signal on DE-X 180-350).
Drainage outlet with protective mesh filter and manual shutoff valve.
Maximum air inlet temperatures: 70°C (DE-X 003-090) and 65°C (DE-X 120-140).
The maximum ambient temperature is 50°C (48°C for DE-X 290, 46°C for DE-X 350).
Maximum working pressure is 16 barg (14 barg for DE-X 180-350).
Electrical protection rating: IP22.
Accessories & Kits:
RS485 serial interface.
Compressed air bypass kit (DE-X 003-240).
Condensate drainage conversion kit.
Protective condenser coating (DE-X 032-350).
Water-cooled variants are available upon request.
Special voltages (on request).
Special packaging.
