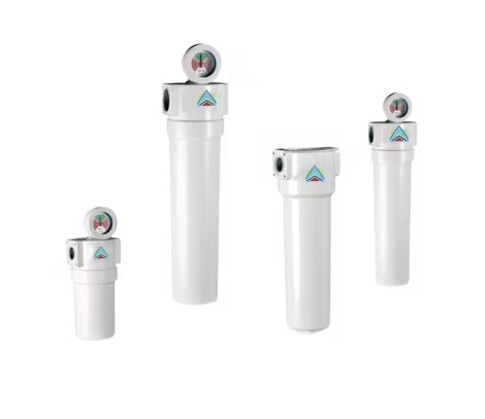

PureTec – HEF – Filters

Air flow 1 – 28 m³/min

Modern industrial processes have become more sophisticated, necessitating compressed air systems with progressively high purity standards; insufficient or ineffective filtering can result in service interruptions, significant maintenance costs, and lost productivity. The PureTec – HEF filters were specifically developed to avoid these issues, providing levels of efficiency that have been certified and validated in the laboratory, as well as a variety of configurations to meet any requirement. The HEF filters are made of an aluminum body with a filtering element that has an extraordinarily high nominal retention efficiency (99.99%) and very low load losses.

↗Send Inquiry
Request technical details, pricing and availability from our engineering team.
Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

Benefits:

  1. Anodisation with exterior powder coating protects the aluminium filtering body against corrosion.

  2. Features include high-quality filtering elements with certified performance and efficiency levels.

  3. Design for generally industrial and difficult environments;

  4. Quick and simple installation;

  5. The “CleanFit” technology allows for easy replacement of filter pieces;

  6. A wide selection of accessories and kits for unique solutions;

  7. Reduced maintenance expenses and plant downtime.

Technical Specifications:

  1. Anodized die-cast aluminum body with exterior powder coating.

  2. Support for the filtering material in stainless steel;

  3. Means of support in non-woven polyester fabric

  4. Four degrees of filtration: P, M, S, and A.

  5. Maximum operating pressure is 16 bar (g).

  6. Maximum working temperature is +65°C.

Accessories & Kits:

  1. Include a clogging indicator, aluminum differential pressure gauge, magnetic differential pressure gauge with dry contact alert, and led alarm.

  2. Wall-mounted kit HEF 005-HEF 070.

  3. Pack a mounting kit for 2-3 filters. HEF 005-HEF 070 includes floating internal, externally mounted, timed, manual, and capacitive electronic dischargers.
