Description
What Are Chemical Feed Systems?
Chemical feed systems are integrated packages used to store, meter, dose and introduce chemicals into a process or treatment system at a controlled rate.
Depending on the application, a chemical feed system may incorporate:
- Chemical feed pumps
- Chemical storage or day tanks
- Metering pumps
- Suction and discharge piping
- Isolation valves
- Check valves
- Pressure relief systems
- Flow measurement
- Level measurement
- Chemical injection points
- Instrumentation
- Control panels
- PLC automation
- HMI interfaces
- Safety interlocks
The system can be supplied as a compact skid-mounted package or customized for larger industrial installations.
Chemical Feed Systems Offered
Aegis Projects can engineer chemical feed systems for a variety of treatment and process applications, including:
Disinfection Systems
Chemical feed systems for controlled addition of disinfectants into water and process streams.
Fluoride Treatment Systems
Controlled fluoride dosing systems for applications requiring accurate and consistent chemical feed.
Sodium Hypochlorite Feed Systems
Metering and dosing systems for sodium hypochlorite applications, commonly associated with disinfection and water treatment processes.
Potassium Permanganate Dosing Systems
Chemical dosing packages designed for controlled potassium permanganate addition in applicable treatment processes.
Sodium Hydroxide Feed Systems
Automated or manually controlled sodium hydroxide feed systems for process treatment and pH adjustment applications.
Sulfuric Acid Dosing Systems
Chemical feed packages designed for controlled sulfuric acid dosing, with materials selected according to the chemical service.
Sodium Bisulfite Metering Systems
Metering systems for controlled sodium bisulfite addition in suitable water and process treatment applications.
Dispersant Polymer Dosing Systems
Chemical feed systems for controlled polymer and dispersant dosing in industrial treatment processes.
Alum Feed Systems
Chemical feed packages for alum dosing applications, including coagulation and water treatment processes.
Coagulation & Flocculation Systems
Integrated chemical dosing systems for coagulation and flocculation processes, allowing treatment chemicals to be introduced at controlled rates.
Hydrochloric Acid Metering Systems
Chemical metering packages for controlled hydrochloric acid dosing, with appropriate chemical-compatible materials selected according to the application.
Chemical-Compatible Materials
Material selection is an important part of chemical feed system engineering.
Depending on the chemical and process conditions, systems can be configured using materials such as:
- PVC
- CPVC
- Stainless steel
- Alloy 20
- Other suitable chemical-resistant materials
The appropriate material depends on factors such as:
- Chemical composition
- Chemical concentration
- Operating temperature
- Operating pressure
- Chemical compatibility
- Required service life
- Process conditions
Wetted components, piping, valves, seals, tanks and pump components should be evaluated for compatibility with the chemical being handled.
Automated Chemical Feed Systems
Chemical feed systems can be integrated with PLC-based process automation and HMI controls for centralized monitoring and operation.
Automation options can include:
- Automatic dosing control
- Pump start/stop
- Flow monitoring
- Tank level monitoring
- Chemical consumption monitoring
- Pressure monitoring
- High/low-level alarms
- Pump protection
- Automatic sequencing
- Process interlocks
- Emergency shutdown
- Alarm indication
- Local HMI operation
- Remote monitoring or control where required
Automation can help maintain consistent chemical feed rates while reducing manual intervention.

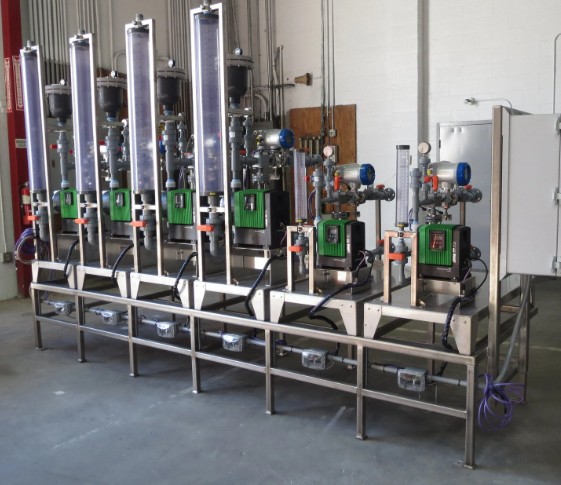

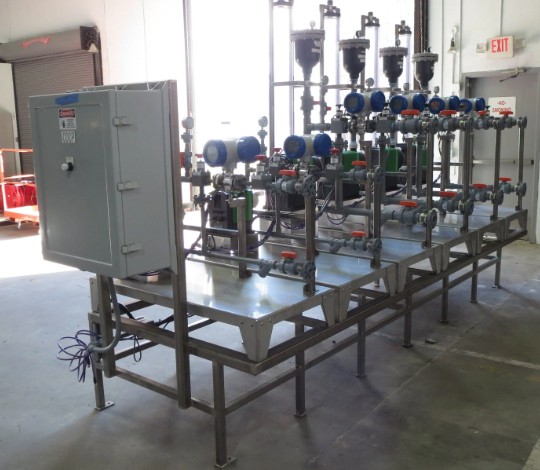

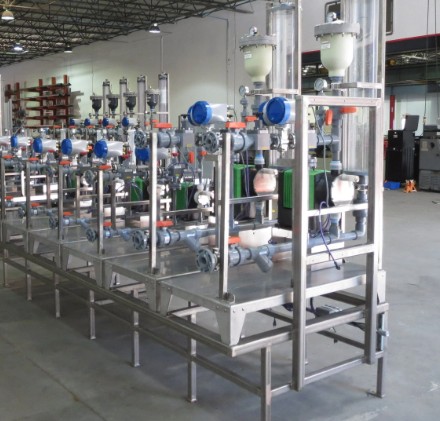

Skid-Mounted Chemical Feed Packages
Aegis Projects can integrate pumps, tanks, piping, valves, instrumentation and controls onto a common structural skid.
A typical package may include:
Chemical Storage/Day Tank → Feed Pump → Piping & Valves → Instrumentation → Injection Point → Control System
The skid-mounted configuration provides a compact and organized system that can be factory assembled and tested before delivery.
Benefits of Skid-Mounted Chemical Feed Systems
- Compact design
- Integrated equipment
- Factory assembly
- Reduced field installation
- Simplified piping connections
- Centralized instrumentation
- Automated control options
- Easier transportation
- Simplified commissioning
- Reduced site integration requirements
Applications
Chemical feed systems can be engineered for applications across several industries, including:
- Water treatment
- Wastewater treatment
- Industrial water treatment
- Chemical processing
- Petrochemical industries
- Oil & gas
- Manufacturing
- Power and utilities
- Process industries
- Environmental treatment systems
- Industrial chemical handling
Custom Chemical Feed System Engineering
Every chemical feed application can have different requirements. Aegis Projects can develop customized systems based on:
- Chemical type
- Chemical concentration
- Required feed rate
- Number of dosing points
- Pump requirements
- Storage requirements
- Operating pressure
- Operating temperature
- Piping material
- Equipment material
- Instrumentation
- Automation requirements
- Available installation space
- Site conditions
The system can be designed as a standalone chemical feed package or integrated into a larger process treatment or automation system.
Engineering, Assembly & Testing
Aegis Projects can provide an integrated project scope covering mechanical equipment, piping, instrumentation, electrical systems and automation.
Depending on project requirements, services can include:
- Process and mechanical engineering
- Chemical compatibility assessment
- Pump selection
- Skid design
- Piping design
- 2D/3D equipment layout
- Instrument selection
- Electrical panel integration
- PLC programming
- HMI development
- Factory assembly
- Functional testing
- Factory Acceptance Testing (FAT)
- Technical documentation
- Installation support
- Start-up and commissioning assistance
- Operator training
Factory testing can help verify equipment operation and control functionality before the package is shipped to site.
Key Advantages
- Accurate chemical feeding and dosing
- Custom-engineered system configuration
- Chemical-compatible material selection
- PVC, CPVC, stainless steel and Alloy 20 options where suitable
- Positive displacement metering pump options
- Manual or automated operation
- PLC and HMI integration
- Integrated instrumentation
- Skid-mounted construction
- Factory assembly and testing
- Reduced site installation requirements
- Simplified commissioning
- Suitable for a wide range of treatment chemicals
- Customized according to project requirements
Safety & Chemical Compatibility
Chemical feed systems must be designed according to the specific hazards and properties of the chemical being handled.
For corrosive, toxic, hazardous or reactive chemicals, appropriate provisions may include compatible materials, containment, ventilation, pressure relief, isolation, leak detection, emergency shutdown and suitable operator protection.
Final material selection and equipment configuration should be confirmed against the specific chemical composition, concentration, pressure, temperature and applicable project safety requirements.
Why Choose Aegis Projects?
Aegis Projects Technology provides engineered chemical feed systems, chemical dosing skids, chemical metering packages and process treatment systems for industrial applications.
Our approach combines equipment selection, chemical-compatible materials, process piping, instrumentation and automation into an integrated package designed around the customer’s process requirements.
Get a Customized Chemical Feed System
Whether you require a sodium hypochlorite dosing system, sulfuric acid feed system, sodium hydroxide dosing skid, alum feed system, polymer dosing system, hydrochloric acid metering system or a complete automated chemical feed package, Aegis Projects can develop a solution around your application.
Provide your chemical type, concentration, required feed rate, operating conditions and automation requirements to begin engineering your customized Chemical Feed System.
