Description

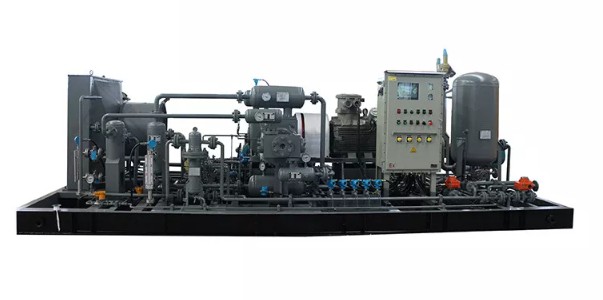

DWFD-2.8(1.28)/(2-10)-55 high-efficiency natural gas compressor.10000~18000Nm³/d throughput, inlet 0.2–1.0MPa.G, inlet temp ≤40℃, discharge 5.5MPa.G with 90kW motor.Around 6500×2800×2700 mm, 10.5T, fit for medium & large long-distance gas transmission.
Features
High-Performance Design
D-type balanced air-cooled oil-free reciprocating piston compressor, 2-3 stage double-acting compression. Skid-mounted design for quick installation and steady compression.
Advanced Control & Safety
Explosion-proof cabinet with soft start, Siemens S7-200 PLC and 10-inch touch screen. RS485 interface supports remote monitoring and unmanned running. Full protection against overload, short circuit and abnormal pressure & temperature.
Low Maintenance & Durability
Few wearing parts, low vibration and noise to cut maintenance costs. Integrated skid layout and patented key parts deliver long service life.
Versatile Applications
Suitable for long-distance pipeline pressure compensation, oilfield gas injection for EOR and gas storage peak shaving.
Highlight Advantages
| | | |
| Has high efficiency, strong reliability, and high degree of automation; | Less vulnerable parts, low vibration, low noise, and easy operation and maintenance | The main and auxiliary equipment of the compressor are all installed on the sled, running smoothly and reliably. The overall sled installation is convenient for the transportation and installation of the compressor | The entire machine components are carefully designed |
Whole Machine Description

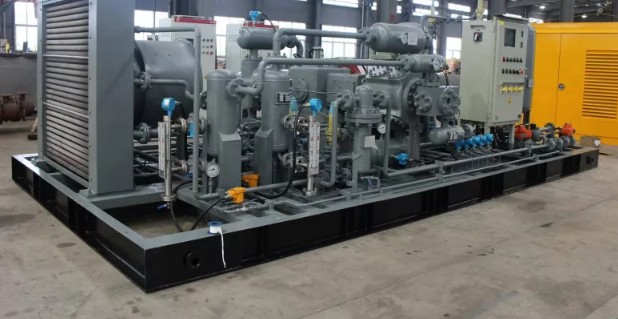

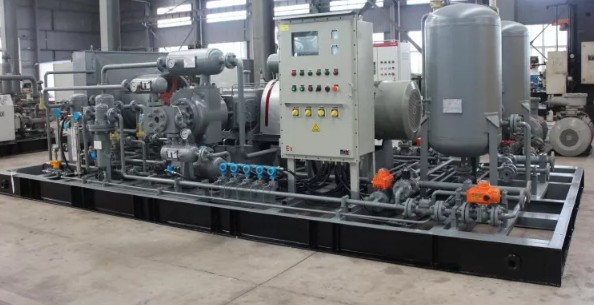

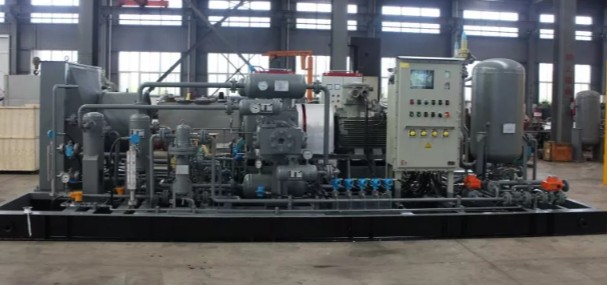

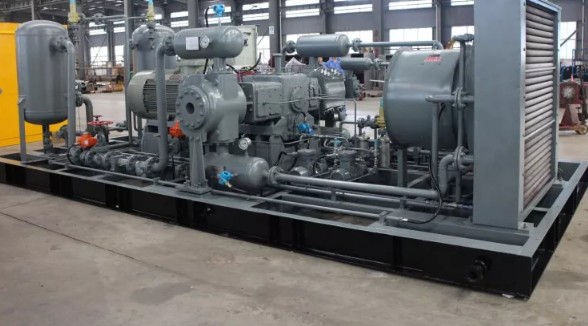

This D-type balanced air-cooled oil-free reciprocating piston compressor features 2-row 3-stage compression with modular integrated assembly.
Gray cast iron crankcase holds lubricating oil, reserved with ports for oil filling, draining, level observation and temperature detection, fitted with external drain ball valve.
Double middle body isolates crankcase oil from cylinder to avoid medium pollution. Cylinder and cylinder head use gray cast iron or forged steel with oil-free design, axial air valves mounted on cylinder heads.
- Structural form: D-type/M-type/S-type/W-type/V-type/Z-type
- Cooling method: water cooling/air cooling/mixed cooling
- Installation form: fixed/mobile/pry mounted/cabin type
- Drive mode: motor drive/diesel engine start
- Transportation: sea/air/land
Technical Parameter
| No. | Model | Medium | Flow rate
(Nm3/h) | Exhaust pressure
MPa | Motor power
(kW) | Cooling method | Overall dimensions
(mm) | Weights
(kg) |
| 1 | VW-3.5/1-18 | Natural gas | 420 | 1.8 | 55 | Closed water coole | d 4000×1800×2200 | 5000 |
| 2 | DF-0.4/（2～6）-250 | Natural gas | 160 | 25 | 30 | Air-cooled | 2800×1800×1500 | 3500 |
| 3 | DFD-1.36/(30～50)-250 | Natural gas | 4167 | 25 | 315 | Air-cooled | 8500×3700×4100 | 22000 |
| 4 | DFW-3.7/(8～12)-52 | Natural gas | 2083 | 5.2 | 200 | Air-cooled | 6000×3400×2300 | 15000 |
| 5 | DFW-5.3/3-15 | Natural gas | 1100 | 1.5 | 90 | Air-cooled | 6500×3000×2500 | 6000 |
| 6 | DFWD-5.7/(0. 1～0.5)-40 | Natural gas | 75～365 | 4 | 90 | Air-cooled | 7000×3400×2500 | 100000 |
| 7 | DFWD-5/(1.5～3.6)-14.2 | Natural gas | 700 | 1.42 | 90 | Air-cooled | 5000×3200×2200 | 6500 |
| 8 | DW-9/3-35 | Natural gas | 2000 | 3.5 | 250 | Air-cooled | 4800×4000×2000 | 13000 |
| 9 | MFWD-7/(10～30)-35 | Natural gas | 6250 | 3.5 | 315 | Air-cooled | 6300×3200×3200 | 16000 |
| 10 | VF-1.4/(5～7)-250 | Natural gas | 500 | 25 | 110 | Air-cooled | 5000×2400×2100 | 6800 |
FAQ
How is the compressor transported and packaged?
Support sea, land and air transport. Metal cabin, wooden case and soundproof cabin packaging protect the unit during delivery.
Are there similar products available for different needs?
Multiple models for different working conditions, such as VW-3.5/1-18 and DFW-3.7/(8~12)-52 with different flow and pressure parameters.
DWFD-2.8 (1.28)/(2-10)-55 high-efficiency natural gas compressor features stable performance for global energy industries. Contact us for quotations.
